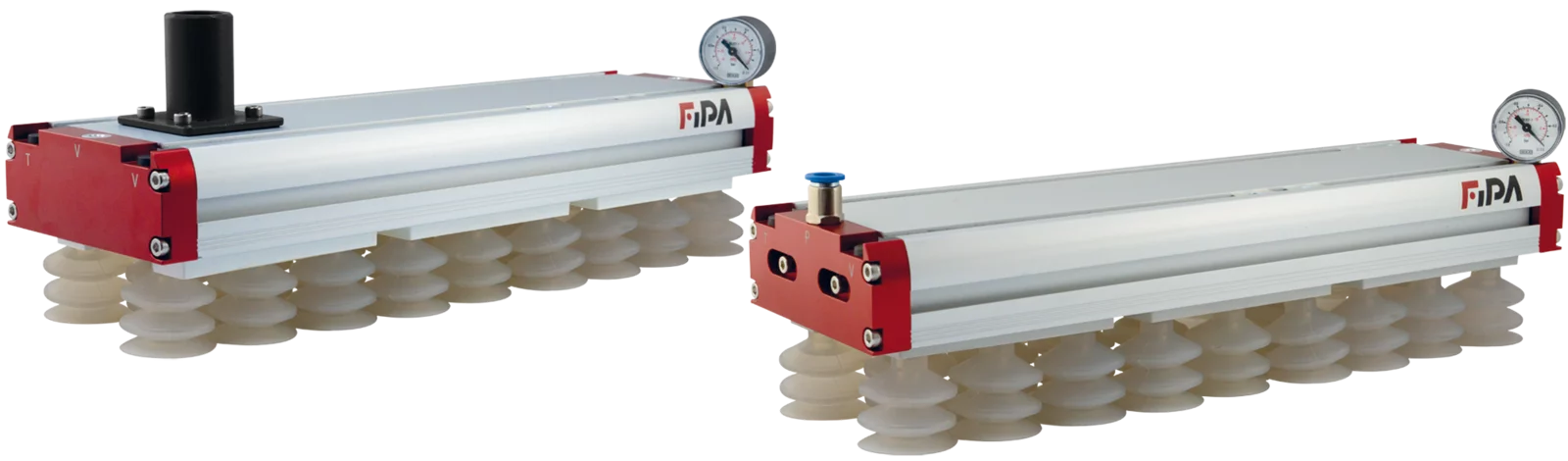

Area gripper FSG 434 mm, for cent. vacuum supply, flow reduction 1,0 mm, cups Ø40 mm SI
SKU:FSG.PG130.434.3C02T
Login to see the price
- For automated handling of individual products or product layers without changing grippers
- Low noise emissions for a pleasant working environment
- With built-in ejectors or with connection to a central vacuum supply
- With check valves or flow reduction
- The plug-in vacuum cups can be exchanged easily and quickly
- Area grippers with check valves are suitable for swivel/tilt movements up to less than 90°
- Equipped with vacuum gauge 91.005 as standard
Notes
The suction force depends on the workpiece to be suctioned and the vacuum generation.
For types with integrated ejectors, the specified vacuum level can only be achieved with non-suctioning workpieces.
For types with external vacuum supply, the vacuum source and the distance to the vacuum source are decisive for the vacuum level and thus the suction force. The specified vacuum level and the specified suction force serve here only as an exemplary orientation.
By using different vacuum generators, both higher and lower vacuum levels/suction forces are possible.
For types with integrated ejectors, the specified vacuum level can only be achieved with non-suctioning workpieces.
For types with external vacuum supply, the vacuum source and the distance to the vacuum source are decisive for the vacuum level and thus the suction force. The specified vacuum level and the specified suction force serve here only as an exemplary orientation.
By using different vacuum generators, both higher and lower vacuum levels/suction forces are possible.
Optional accessories and spare parts
Optional accessories:
- Electronic vacuum switch with display GS02.001
- Electronic vacuum switch GS02.003
- Electronic vacuum and pressure switch 20.026
- Flange module for area gripper FSG.ACC130.0001
- Slot nut 1x M8 for area gripper FSG.ACC130.0002
- Optical sensor with sensor holder FSG.ACC130.0004
Spare parts:
- Replacement plug-in cup in silicone 55° Shore A 21.020.185.2
- Ejector for area gripper FSG.ACC130.0003
| Designation | Value |
|---|---|
| Ø G | 32.5 mm |
Here you will find all available documents, such as data sheets, certificates, and much more.
| File | Filesize | Actions |
|---|---|---|
| datasheet-bds-fipa-flaechengreifer-fsg-einstecksauger-40-en-master.pdf | 1.21 MB | Download |
Here you can find all documents about this product.
Please login to download CAD files
CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
