    Product Image
    More items

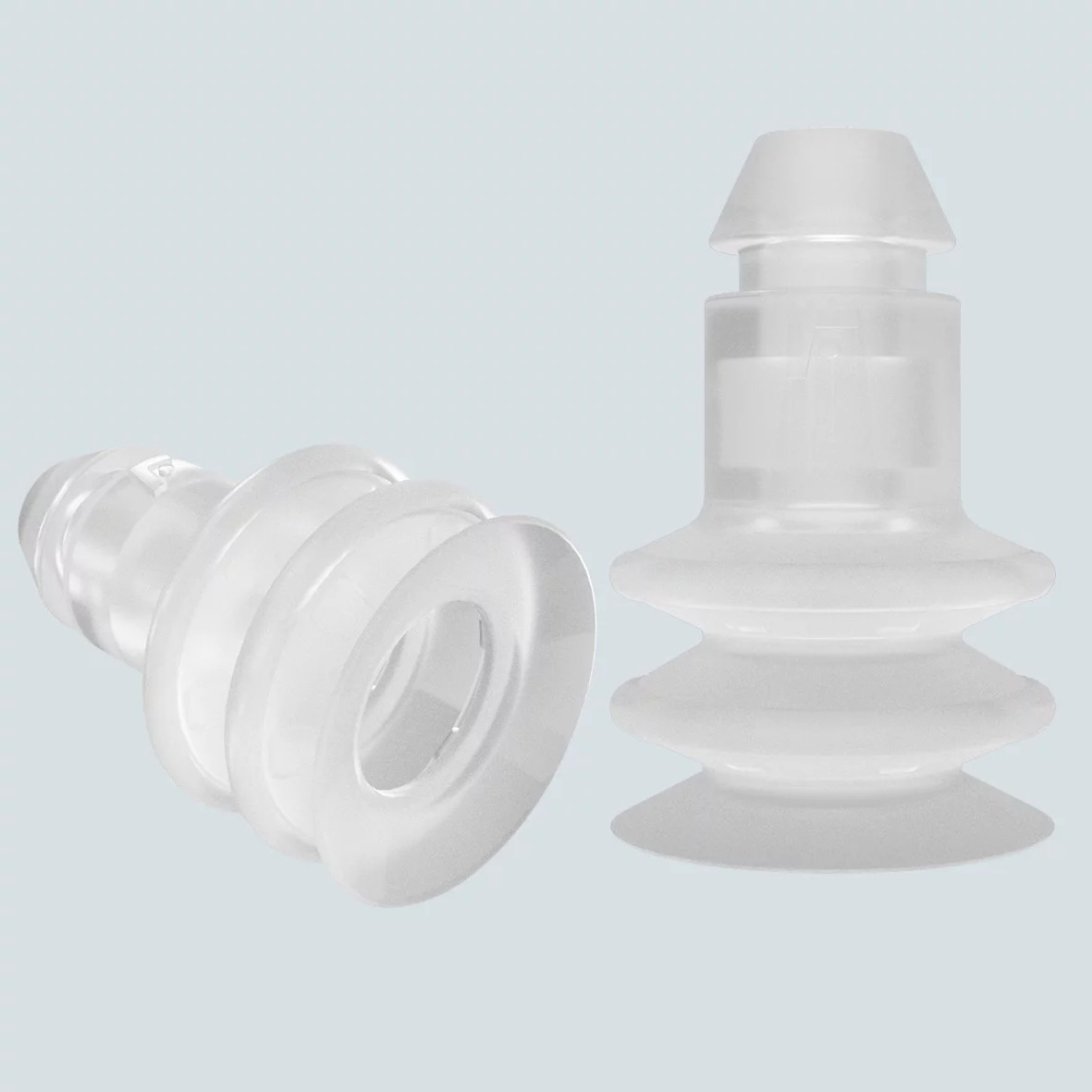

    Plug-In cup diam. 20 mm (2,5 Bellows) silicone transparent 55° Shore

    SKU:21.020.185.2

    Login to see the price
    Loading...

    Product notes

    • Bellows vacuum cups for direct installation in bores and housings
    • Simple and tool-free exchange
    • Dynamic use on cardboard and packaging
    • Compatible with common vacuum gripping systems
    • Optionally with built-in flow resistance to reduce leakage

    Flow resistors available separately
    • 270.730: SW08 = 0.8 mm; POM white
    • 270.731: SW10 = 1.0 mm; POM blue
    • 270.732: SW13 = 1.3 mm; POM black
    • 270.733: SW15 = 1.5 mm; POM white

    Notes

    Material code and Shore hardness:
    *.2 = SI (tr) Silicone transparent, Shore hardness 55°
    *.8 = SI (w) Silicone white, Shore hardness 35°


    Order example:
    21.020.185.2 = Plug-In vacuum cup single, Shore hardness 55°
    21.020.185.8-SW08-LE = Plug-In vacuum cup, Shore hardness 35°, with mounted flow resistor 0.8 mm, suitable for food contact
    Product Dimensional Drawing Image
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
