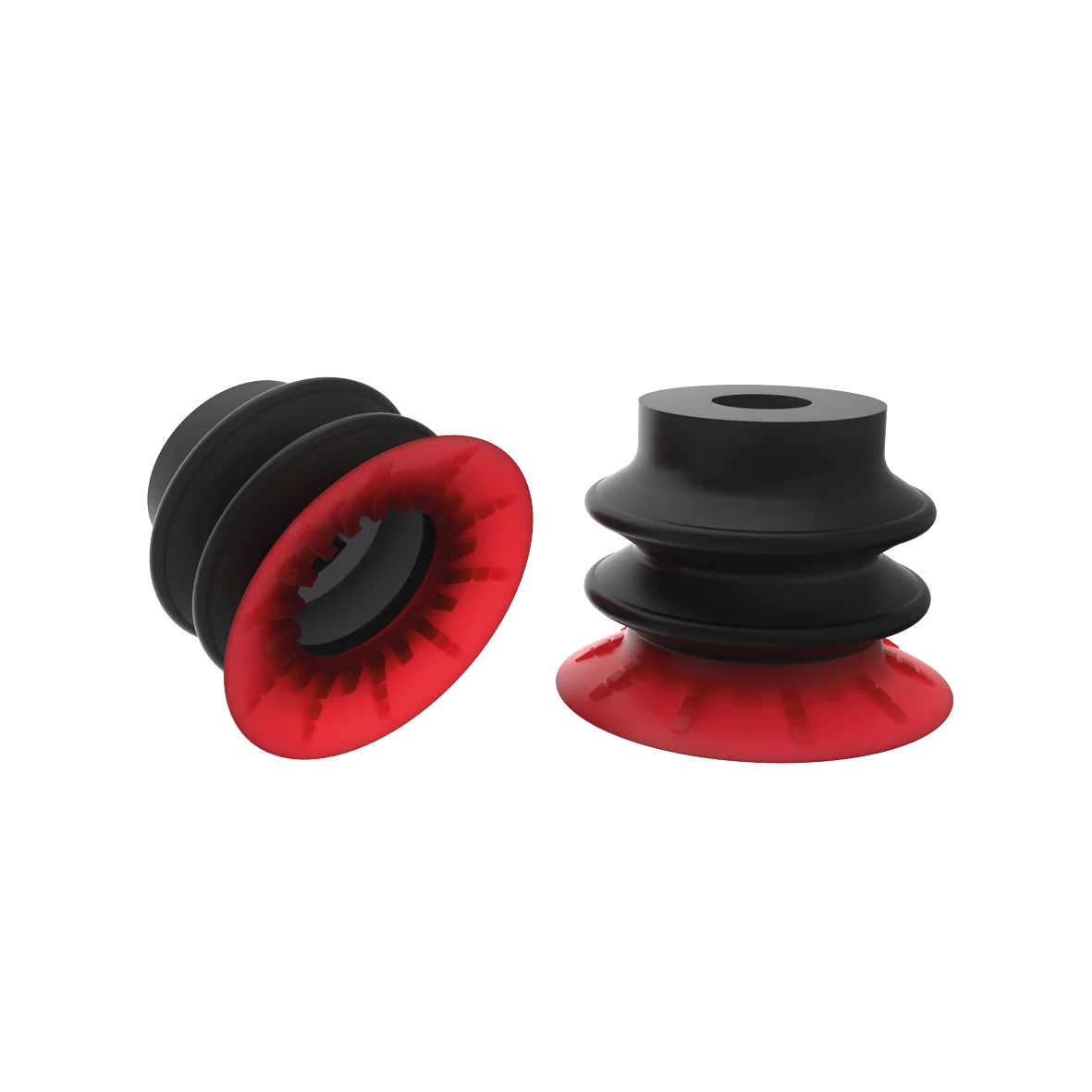

    Bellows vacuum cup Ø 35 mm (2.5 bellows) Varioflex® 30°/60°

    SKU:21.035.190.16

    Login to see the price
    Loading...

    Robust 2K polyurethane bellows vacuum cup with 2.5 folds for bag handling in the packaging industry, online retail and logistics.
    Use for handling filled bags and a wide variety of film packaging.
    Soft, conformable sealing lip in 30° shore A.
    Non-detachable vulcanized, robust bellows area made of PU in 60° Shore A.

    • Best possible sealing even on bags with significant wrinkling allows low vacuum level (energy saving)
    • Flexibility also allows gripping of little filled bags
    • Ideal stability and grip for short cycle times and high acceleration
    • Wear-resistant material for a long service life
    Product Dimensional Drawing Image
    DesignationValue
    Ø D35 mm
    Ø d121 mm
    Ø d26.5 mm
    Ø d417 mm
    H25.3 mm
    Ø d330 mm
    Ø d634 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datenblatt-fipa-sv-bgx2-beutelsauger-varioflex-en-master.pdf1.55 MB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
