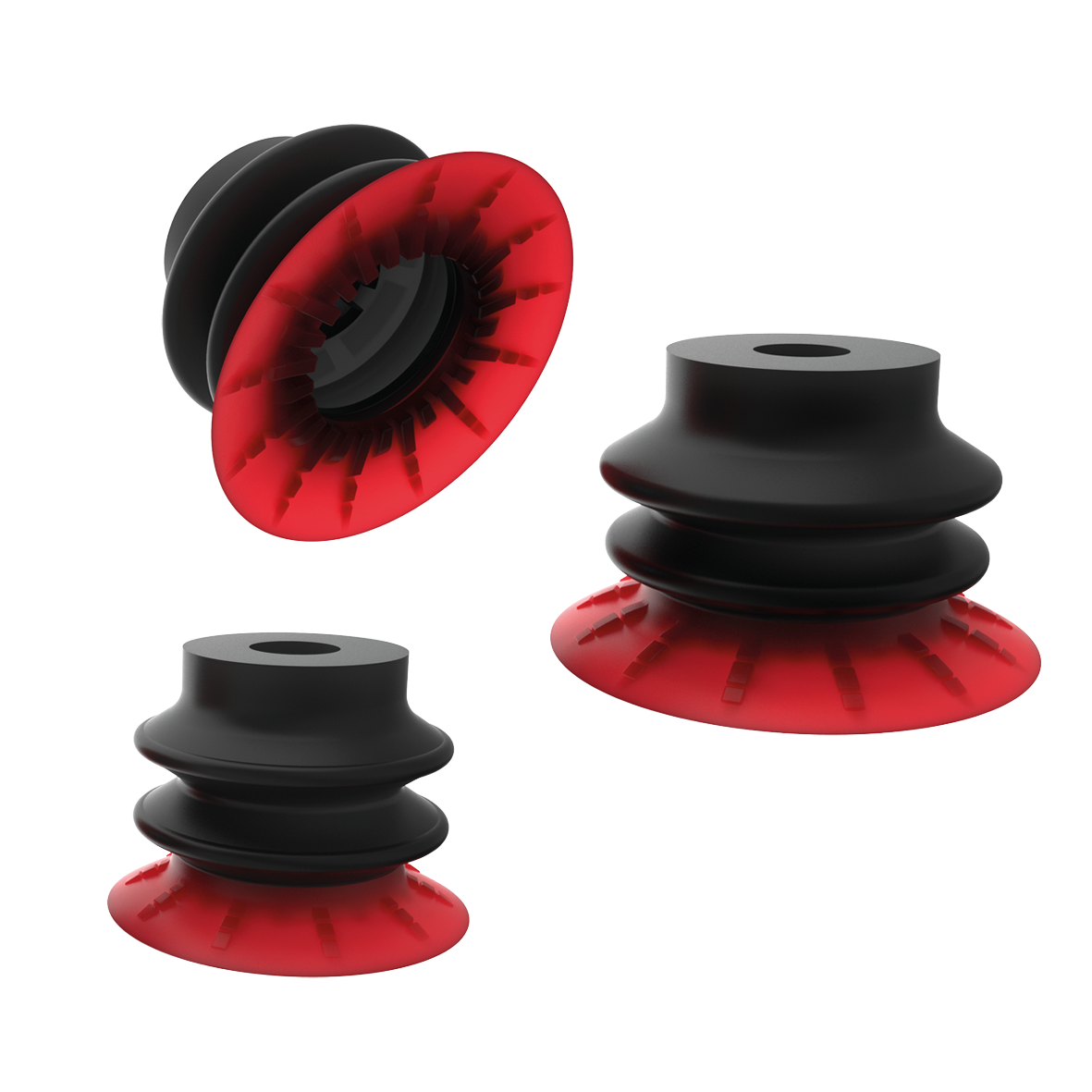

    Bellows vacuum cup SV-BGX2 - Bag gripping Varioflex® Ø 35 mm (2.5 bellows)

    Orderhint:
    • Imperial NPT fittings for the US-market available upon request

    Robust 2K polyurethane bellows vacuum cup with 2.5 folds for bag handling in the packaging industry, online retail and logistics.
    Use for handling filled bags and a wide variety of film packaging.
    Soft, conformable sealing lip in 30° shore A.
    Non-detachable vulcanized, robust bellows area made of PU in 60° Shore A.

    • Best possible sealing even on bags with significant wrinkling allows low vacuum level (energy saving)
    • Flexibility also allows gripping of little filled bags
    • Ideal stability and grip for short cycle times and high acceleration
    • Wear-resistant material for a long service life
    Product Dimensional Drawing Image
    DesignationValue
    Ø D35 mm
    Ø d121 mm
    Ø d26.5 mm
    Ø d417 mm
    H25.3 mm
    Ø d330 mm
    Ø d634 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datenblatt-fipa-sv-bgx2-beutelsauger-varioflex-en-master.pdf1.55 MB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
