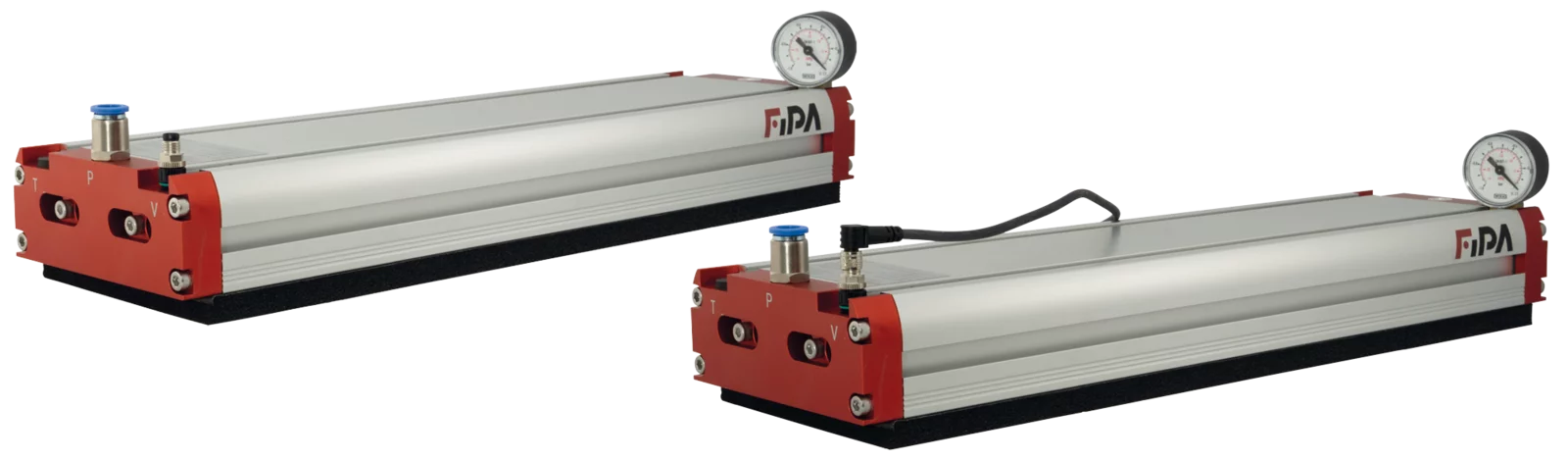

Area gripper FSG-V 849 mm, w. ejector and valves, Flow reducers 1,0 mm, sealing foam bk height 20 mm
SKU:FSG-V.PG130.849.5F20C4
Login to see the price
- For automated handling of individual products or product layers without changing grippers
- Low noise emissions for a pleasant working environment
- With built-in cartridge ejectors
- With integrated valves to control the suction (NO) and blow-off (NC) functions
- With check valves or flow resistors
- The sealing foam can be replaced quickly, non-destructively and without leaving residues
Notes
- Area grippers with check valves are suitable for swivel/tilt movements up to less than 90°
- Equipped with pressure gauge as standard, vacuum switch optionally available
- Other sealing foams (height, shape) on request
Optional accessories and spare parts
Optional accessories:
- Electronic vacuum switch with display GS02.001
- Electronic vacuum switch GS02.003
- Electronic vacuum and pressure switch 20.026
- Flange module for area gripper FSG.ACC130.0001
- Slot nut 1x M8 for area gripper FSG.ACC130.0002
- Optical sensor with sensor holder FSG.ACC130.0004
Spare parts:
- Spare foam length 295 mm FSG.ACC130.295.5F20
- Spare foam length 434 mm FSG.ACC130.434.5F20
- Spare foam length 572 mm FSG.ACC130.572.5F20
- Spare foam length 711 mm FSG.ACC130.711.5F20
- Spare foam length 849 mm FSG.ACC130.849.5F20
- Spare foam length 988 mm FSG.ACC130.988.5F20
- Spare foam length 1126 mm FSG.ACC130.1126.5F20
- Spare foam length 1265 mm FSG.ACC130.1265.5F20
| Designation | Value |
|---|---|
| A | 849.0 mm |
Here you will find all available documents, such as data sheets, certificates, and much more.
| File | Filesize | Actions |
|---|---|---|
| DataSheet-BDS_FIPA-Flaechengreifer-FSG-V-mit-internen-Ventilen_en_Master.pdf | 951.51 KB | Download |
Here you can find all documents about this product.
Please login to download CAD files
CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
