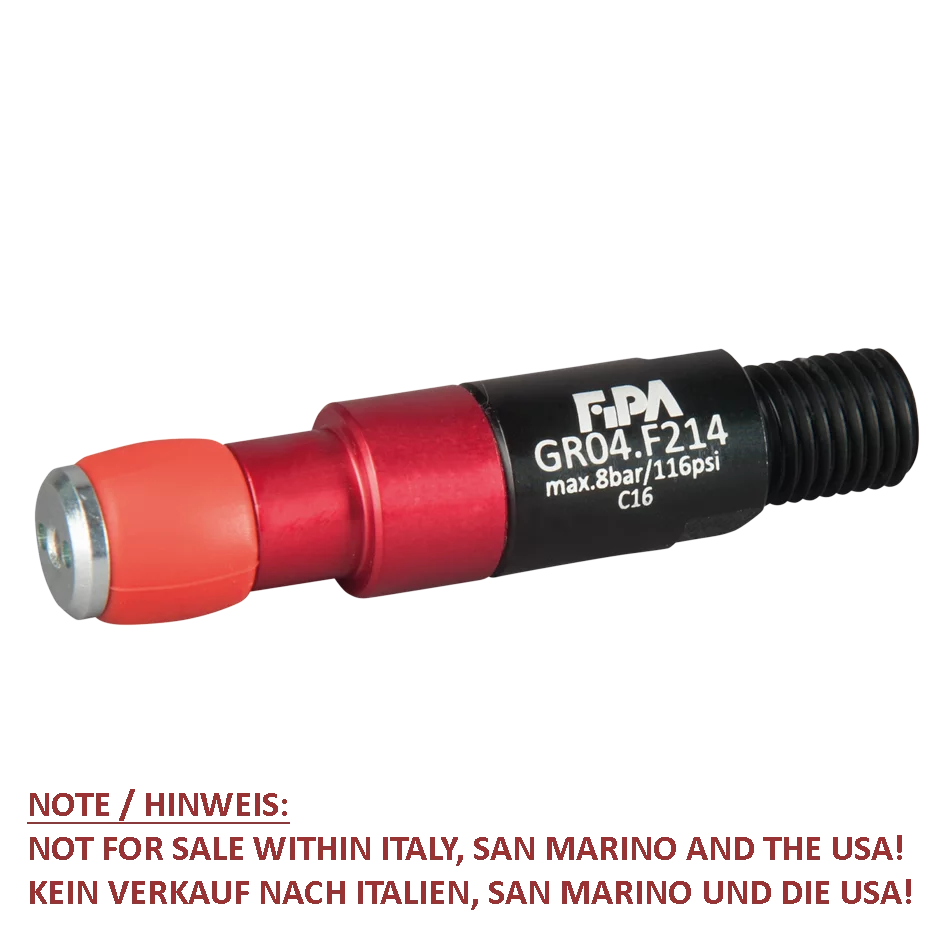

ID grippers for diameters 15 to 19 mm Partdiam. 15-19 mm Mat. silicone

• Single-acting grippers with high holding force
• Gripper bellow expanded by pneumatically driven piston, clamps workpiece at its inner surface
• Ventilation of gripper resets piston and bellow and releases workpiece
• Piston movement adjustable to position of gripped object
• Holding force controlled by feed pressure
• Robust body, made of anodized, high-strength aluminum alloy
• Elastomer bellows available in EPDM or silicone
• Easy and non-destructive exchange of bellows
• Piston movement adjustable to position of gripped object, bellow is not inflated, no risk of bursting

Downward piston movement (workpiece pushed): Clamp the black part of gripper body or using optional extension tubes or threaded mounting brackets

Upward piston movement (workpiece drawn): Clamp the red part of gripper body

NOTES: Not for sale for Italy, San Marino and America
