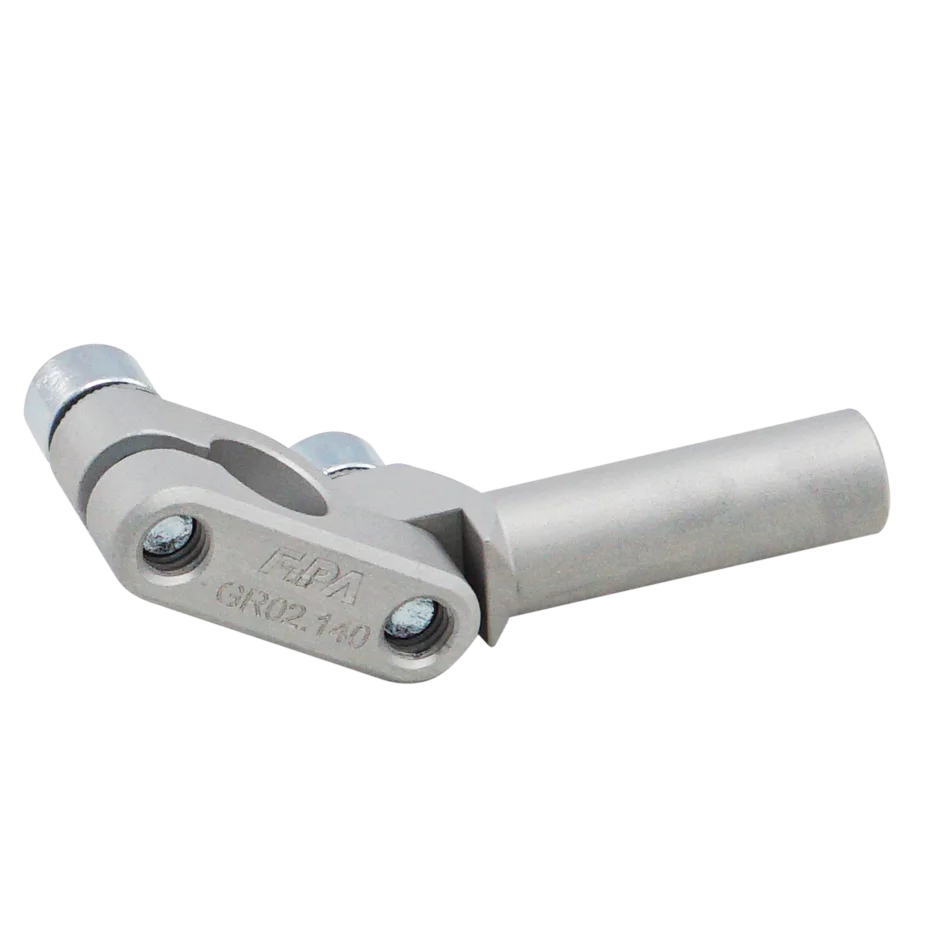

Elbow arm – adjustable clamp diam. 10 mm, shaft length 30 mm
SKU:GR02.140
Login to see the price
- Components for mounting grippers and other gripping elements
- Angle adjustment +/- 95°
| Designation | Value |
|---|---|
| H | 22.7 Mm |
| L | 30.0 mm |
| B | 16.0 mm |
| C | 65.5 mm |
| Ø A | 10.0 mm |
| E | 8.5 mm |
| G | 22.0 mm |
| Ø F | 10.0 mm |
Here you will find all available documents, such as data sheets, certificates, and much more.
| File | Filesize | Actions |
|---|---|---|
| datasheet-bds-fipa-gr02-140-winkelarme-en-master.pdf | 621.46 KB | Download |
Here you can find all documents about this product.
Please login to download CAD files
CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
