Maximum durability, minimum maintenance

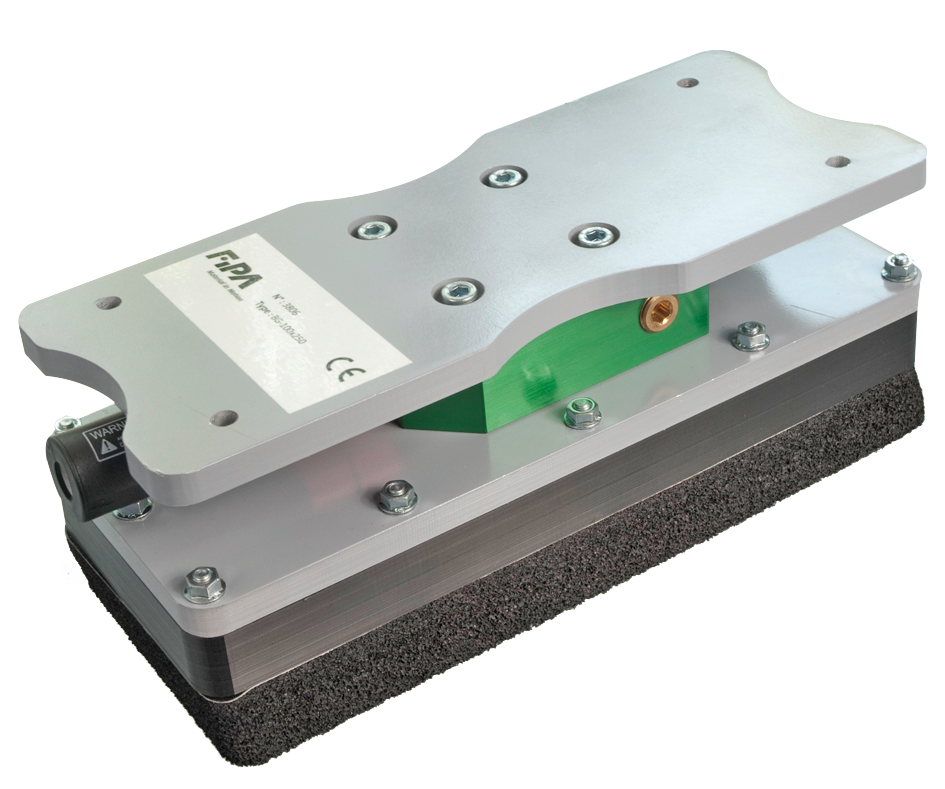

Bag grippers

Orderhint:

Ordering example vacuum generation

TG150x300: integrated via ejectors
TG150x300-OV: designed for external vacuum generation, e.g. via side channel blower or pump

Handling of limp, non-rigid objects such as bags, shrink-wraps or any product that fully covers the suction chamber
Also suitable for other packs with complete coverage of the suction cell
On board vacuum generation via high performance ejectors for optimum suction power
Dust-resistant design

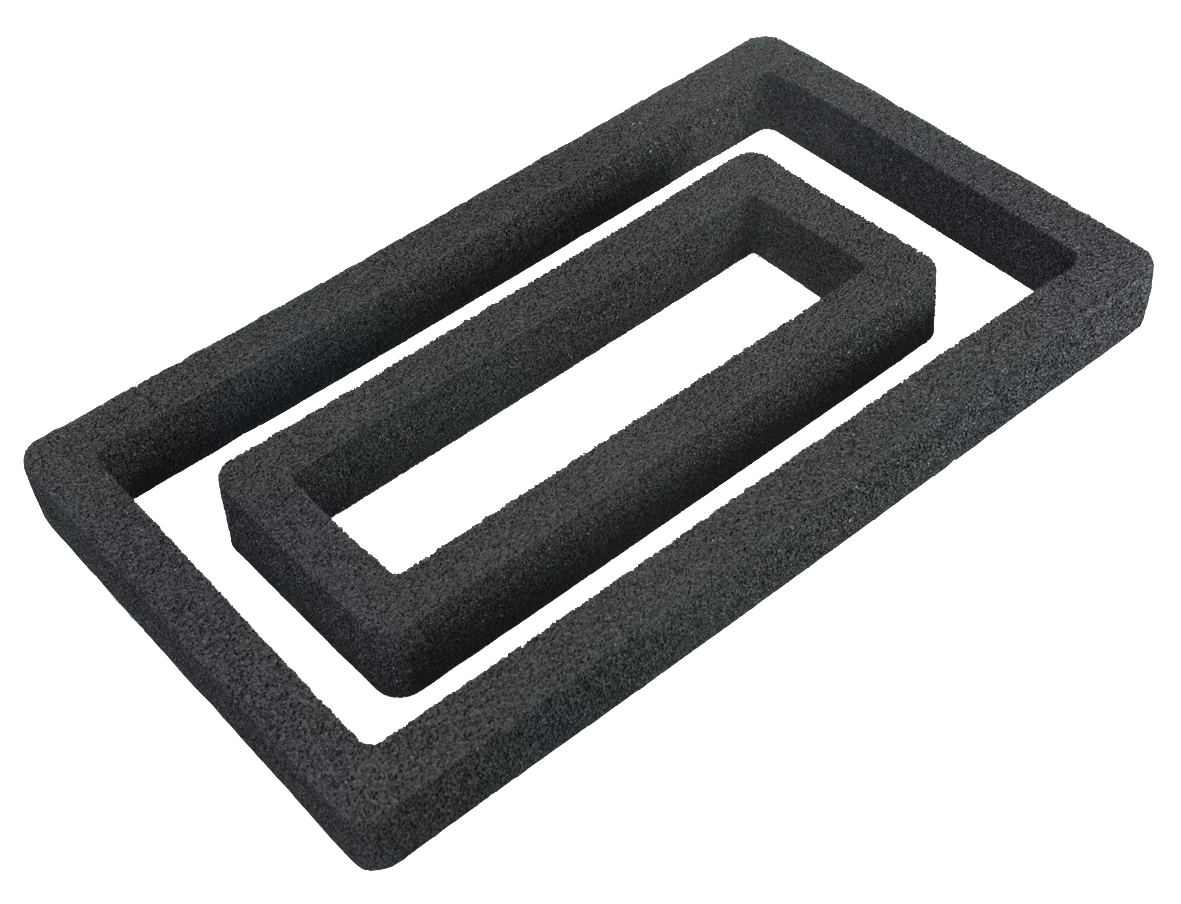

Sealing foam with optimum adjustment to product surface – easy to replace
Optional side channel blower for handling very porous goods
Also suitable for other containers such as cardboard bottles, crates and others

Easy replacement of sealing foam

On request:

Splitting of suction chamber for multi-zone picking and release
Depth of the suction chamber can be adjusted for optimum handling of specific products (standard 40 mm)

Here you will find all available documents, such as data sheets, certificates, and much more.

File	Filesize	Actions
datasheet-bds-fipa-tg-sackgebindegreifer-en-master.pdf	839.94 KB	Download
