    Product Image
    More items

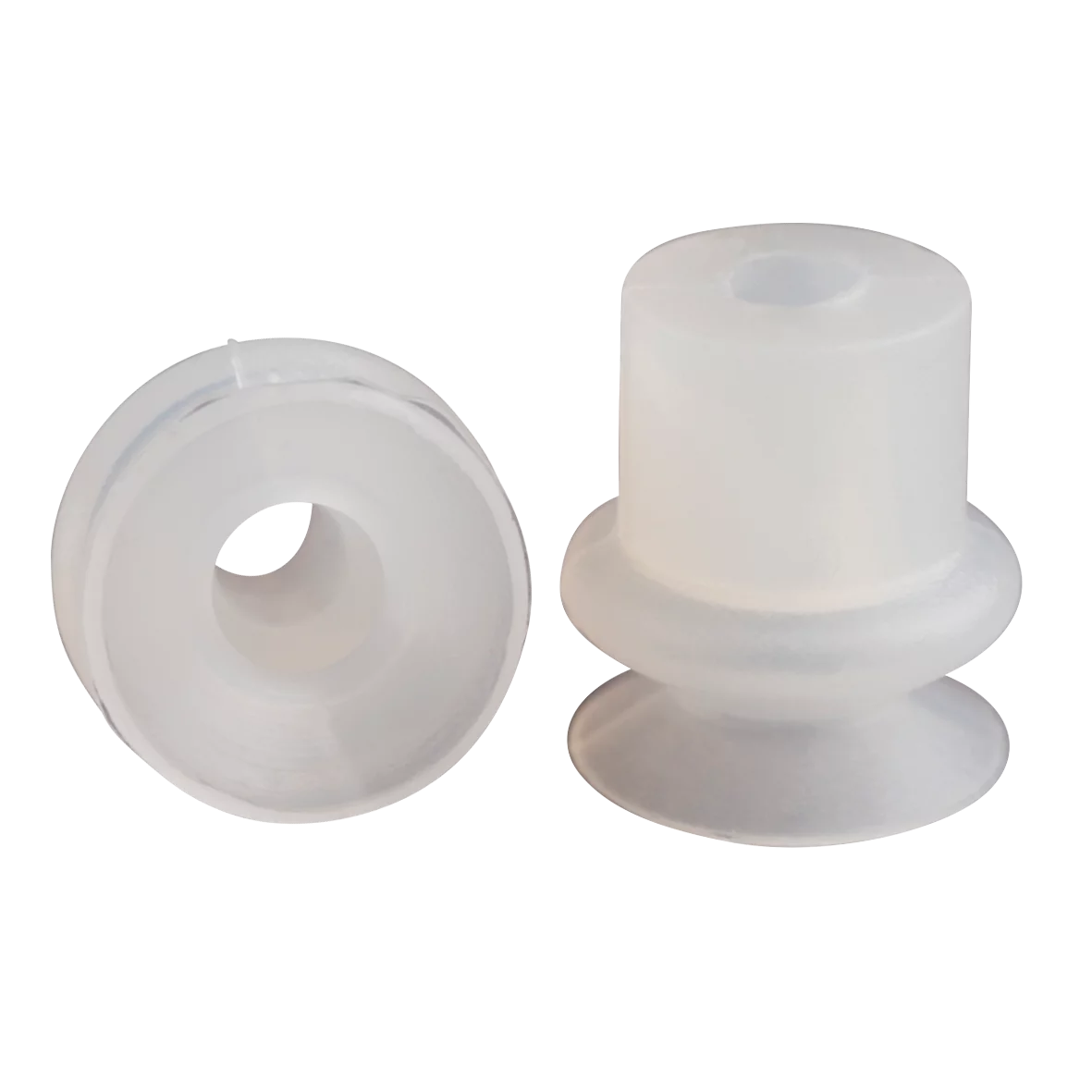

    Bellows vacuum cup diam. 16 mm (1.5 bellows) silicone transparent

    SKU:23.016.016.2

    Login to see the price
    Loading...
    Product Dimensional Drawing Image
    DesignationValue
    DrawingA
    Ø D16.0 mm
    Ø d110.0 mm
    Ø d25.0 mm
    Ø d48.0 mm
    Ø d517.0 mm
    H19.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sbu1-balgsauggreifer-en-master.pdf814.01 KB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
