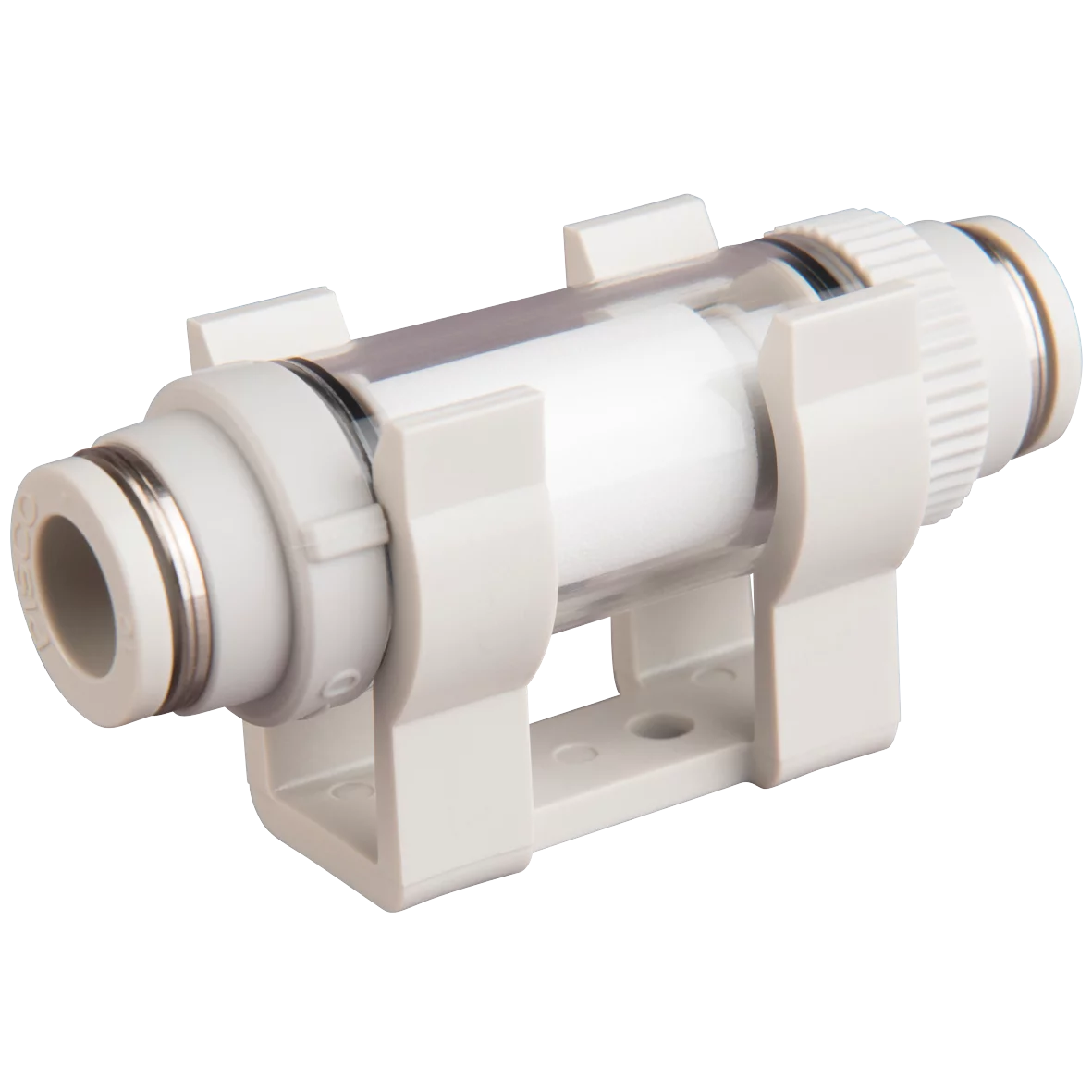

    Vacuum filter, plug-in filter, with holder, 2x inside diameter 10 mm

    SKU:71.004

    Login to see the price
    Loading...
    • Reliable retention of contaminants and liquids that may be drawn in via vacuum cups or other vacuum systems
    • Protects vacuum components (e.g., ejectors) from damage and excessive wear, increasing service life and system reliability
    • Models 71.000 to 71.004 offer cost-efficient operation thanks to replaceable filter cartridges
    Product Dimensional Drawing Image
    DesignationValue
    Ø d110.0 mm
    Ø d222.2 mm
    Ø d34.5 mm
    B20 mm
    A72.7 mm
    C35 mm
    D39.5 mm
    E14 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-71-000-einsteckfilter-en-master.pdf870.4 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
