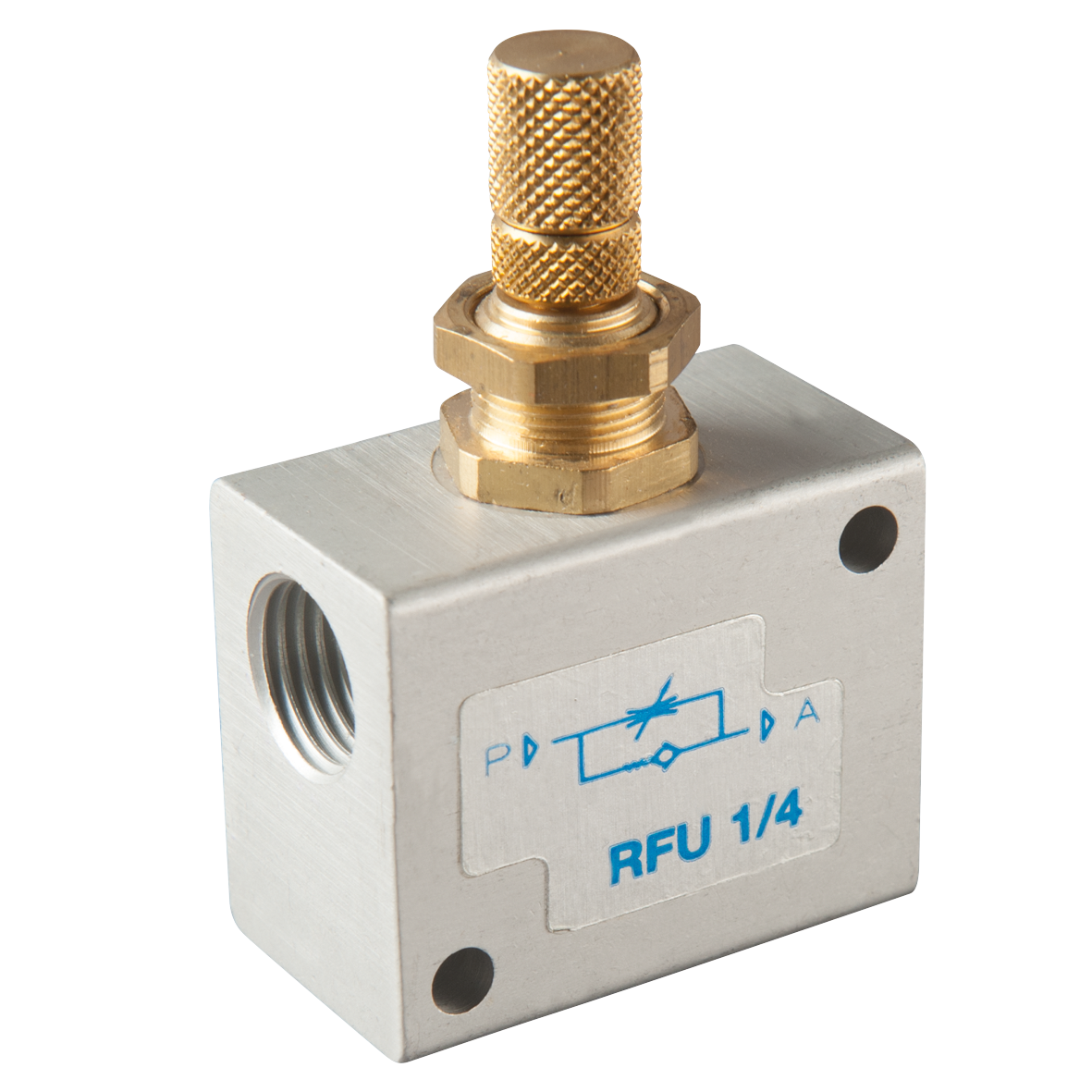

    Product Image

    Inline one-way flow control valve, connection 2x G1/4-female

    • Limits suction performance at a constant vacuum level for stable process conditions
    • Reduces leakage at unoccupied suction cups: Maintains sufficient vacuum for cups holding a workpiece, preventing accidental dropping
    • Manual adjustment via a knurled screw for easy fine-tuning
    Product Dimensional Drawing Image
    DesignationValue
    G1G1/4
    B60.0 mm
    C39.0 mm
    D22.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-73-001-inline-drosselventile-en-master.pdf357.88 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
