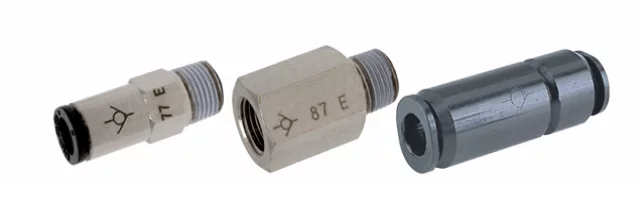

    Check valve, tube D6, R1/4-male nickel plated brass

    SKU:32.615

    Login to see the price
    Loading...
    • Maintains vacuum level in suction systems in case of vacuum generator failure
    • Suitable for energy-saving systems when handling airtight workpieces
    • Hose connections on both sides for easy retrofitting in existing vacuum systems
    • Robust metal body for long service life
    • Very compact design for space-saving integration
    • Installation in any orientation for maximum flexibility
    Product Dimensional Drawing Image
    DesignationValue
    B29 mm
    C11.7 mm
    Ø P12 mm
    Ø D6 mm
    RR1/4
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-32-631-inline-rueckschlagventile-en-master.pdf1.03 MB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
