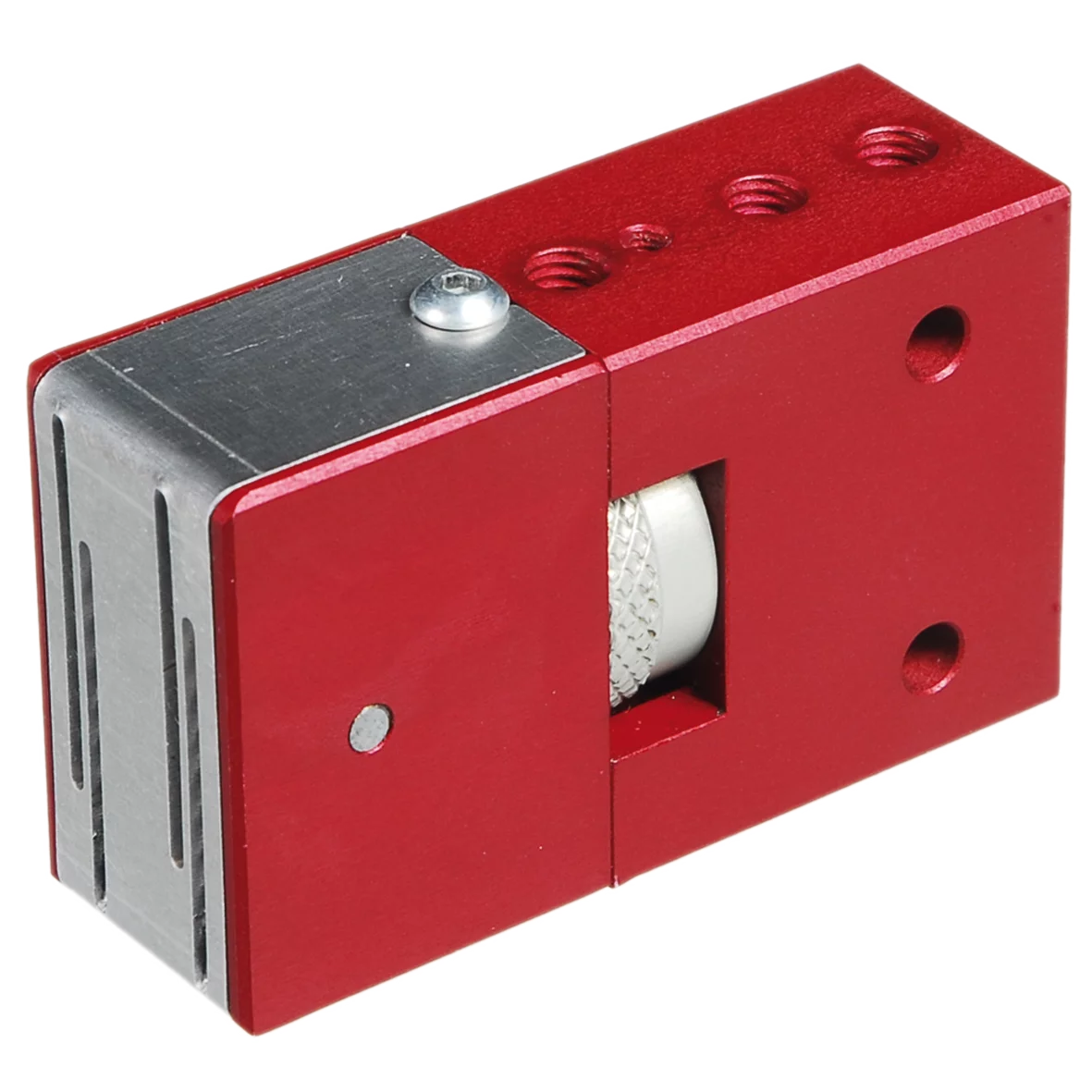

    Product Image
    More items

    Needle grippers GR04.700, needle stroke 0-2 mm

    SKU:GR04.700-20

    Login to see the price
    Loading...
    • Small needle diameter for low entry depth, blow-off function for fast product release
    • Grippers with flat entry angle enables handling of thin or flat parts
    • Knurled screw for stroke adjustment to textile thickness
    • GR04.700: double-acting enables short duty cycles: separate compressed air connections for extraction/retraction of needles, additional compressed air inlet (A) for fast product release
    • Stroke corresponds to maximum entry depth of needles
    • Spare needle plates available as accessories
    Product Dimensional Drawing Image
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr04-700-nadelgreifer-en-master.pdf868.09 KB Download
    Needle-grippers-Overview_en.pdf1.04 MB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
