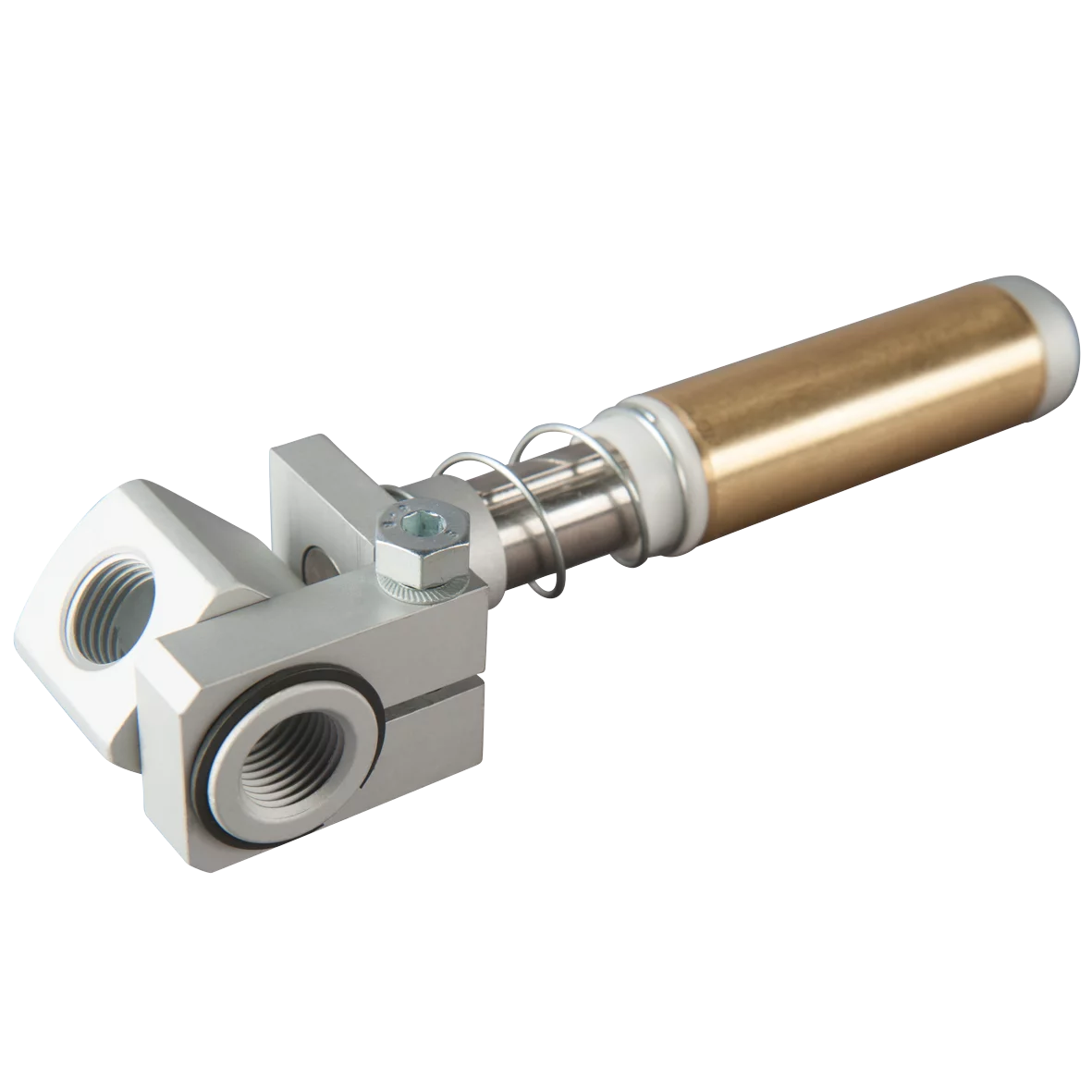

Suction finger, anti-twist shaft length 139.5 mm, stroke 20 mm
SKU:GR03.152B
Login to see the price
- Adjustable head for mounting and aligning vacuum cups with part contours
- Spring compensates for variation in ejection stroke
- Smooth motion due to lubrication-free polymer bearing
- Angle adjustment +/- 120°
| Designation | Value |
|---|---|
| H | 30.7 mm |
| L | 55.0 mm |
| B | 25.0 mm |
| C | 139.5 mm |
| F | 20.0 mm |
| Ø A | 20.0 mm |
| D | 37.5 mm |
| □ G | 24.0 mm |
| E | G1/4 |
Here you will find all available documents, such as data sheets, certificates, and much more.
| File | Filesize | Actions |
|---|---|---|
| datasheet-bds-fipa-gr03-120b-saugarme-en-master.pdf | 1004.36 KB | Download |
