    Product Image
    More items

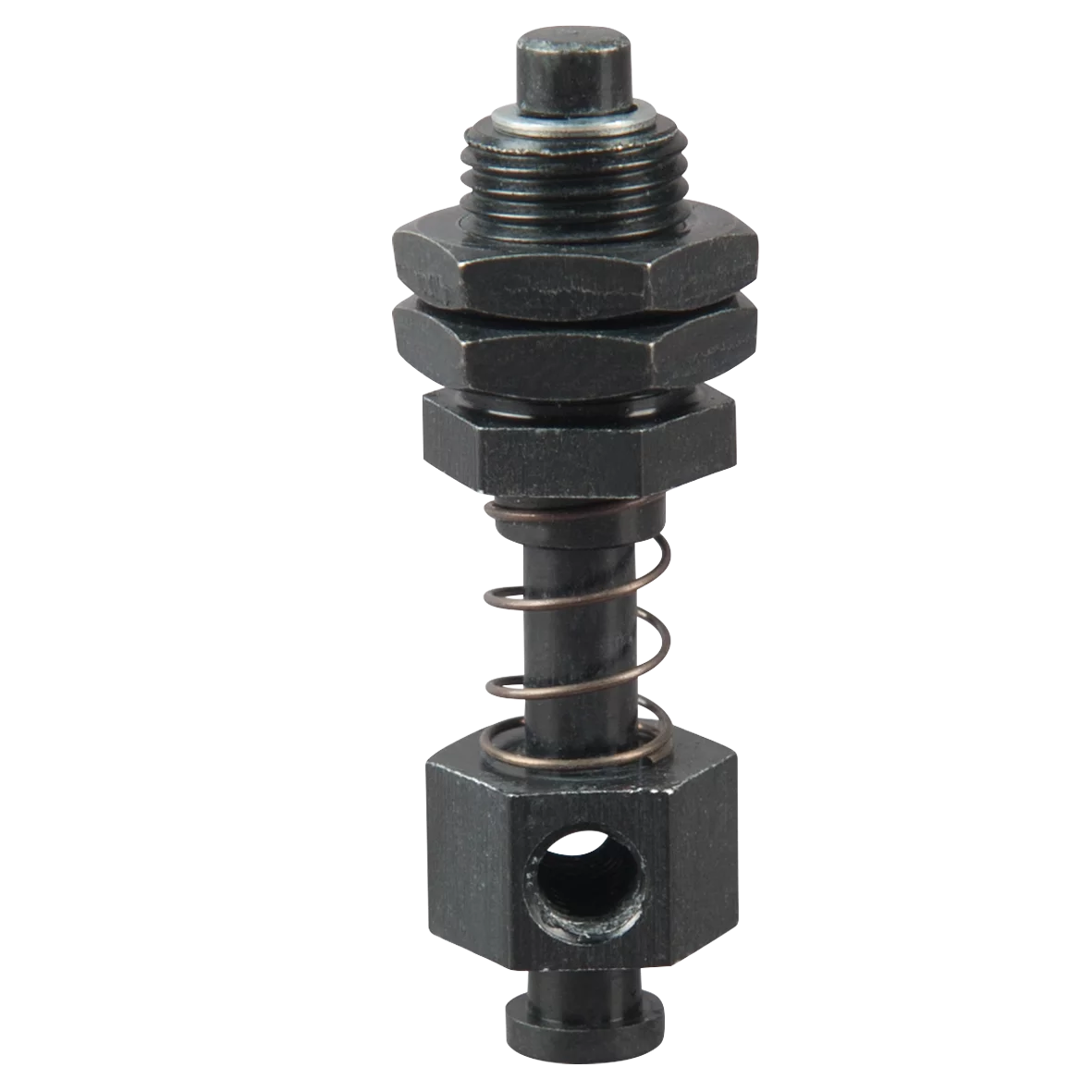

    Spring leveler for direct suction cup mounting stroke 10 mm, spring open, aluminum

    SKU:50.141

    Login to see the price
    Loading...
    • Direct mounting of the spring leveler on the vacuum cup, no additional fitting required
    • Compensate for height differences
    • Soft attachment for sensitive products
    • Leveling with an open spring
    Product Dimensional Drawing Image
    DesignationValue
    Ø d25.0 mm
    H40.0 mm
    G1M5
    Ø d37.0 mm
    h312.0 mm
    SW114.0
    C8.0 mm
    G3M10x1
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sz-niv-da-federstoessel-en-master.pdf719.82 KB Download
    Spring-levelers-Overview_en.pdf1001.34 KB Download
    Here you can find all documents about this product.
