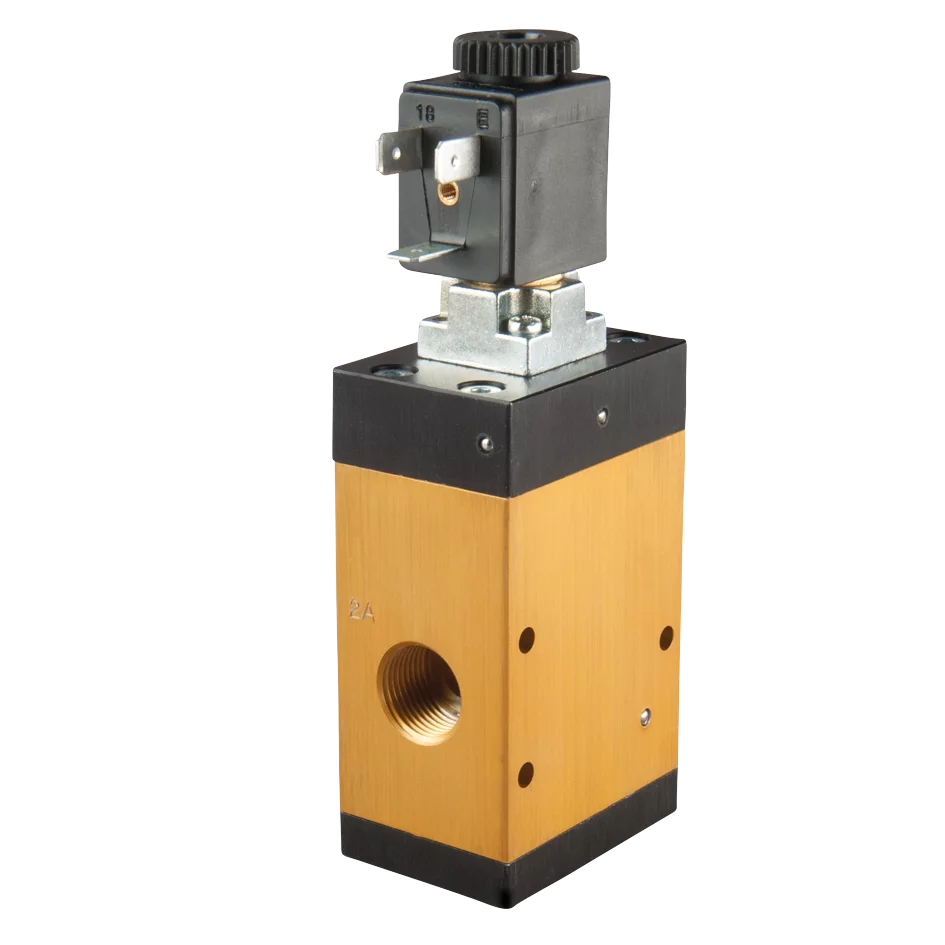

3/2 Way solenoid valve for vacuum, internally vacuum pilot operated, NC, Aluminum anodized
SKU:36.610
Login to see the price
- Functions: Vacuum ON/OFF, venting, or blow-off
- High flow rate in a compact design for short evacuation times and rapid vacuum buildup
- Valve control requires no compressed air connection thanks to internal vacuum pilot
- Required minimum vacuum: 40 %
- Short switching times for fast process cycles
- Workpiece retention during power failure (NO)
- Robust yet lightweight housing for flexible applications
- Supplied without coil and connector; please order separately, power consumption: 24 V DC: 5 W, 230 V AC: 5 VA
Wiring diagrams
Pilot valve
- Manual mode for functional test: Setscrew in zero position
- Automatic mode: Setscrew in position "1"
| Designation | Value |
|---|---|
| G1 | G3/8 |
| G2 | G3/8 |
| B | 83.0 mm |
| C | 137.0 mm |
| F | 33.0 mm |
| G3 | G3/8 |
| D | 40.0 mm |
| E | 33.0 mm |
| d1 | 4.5 mm |
