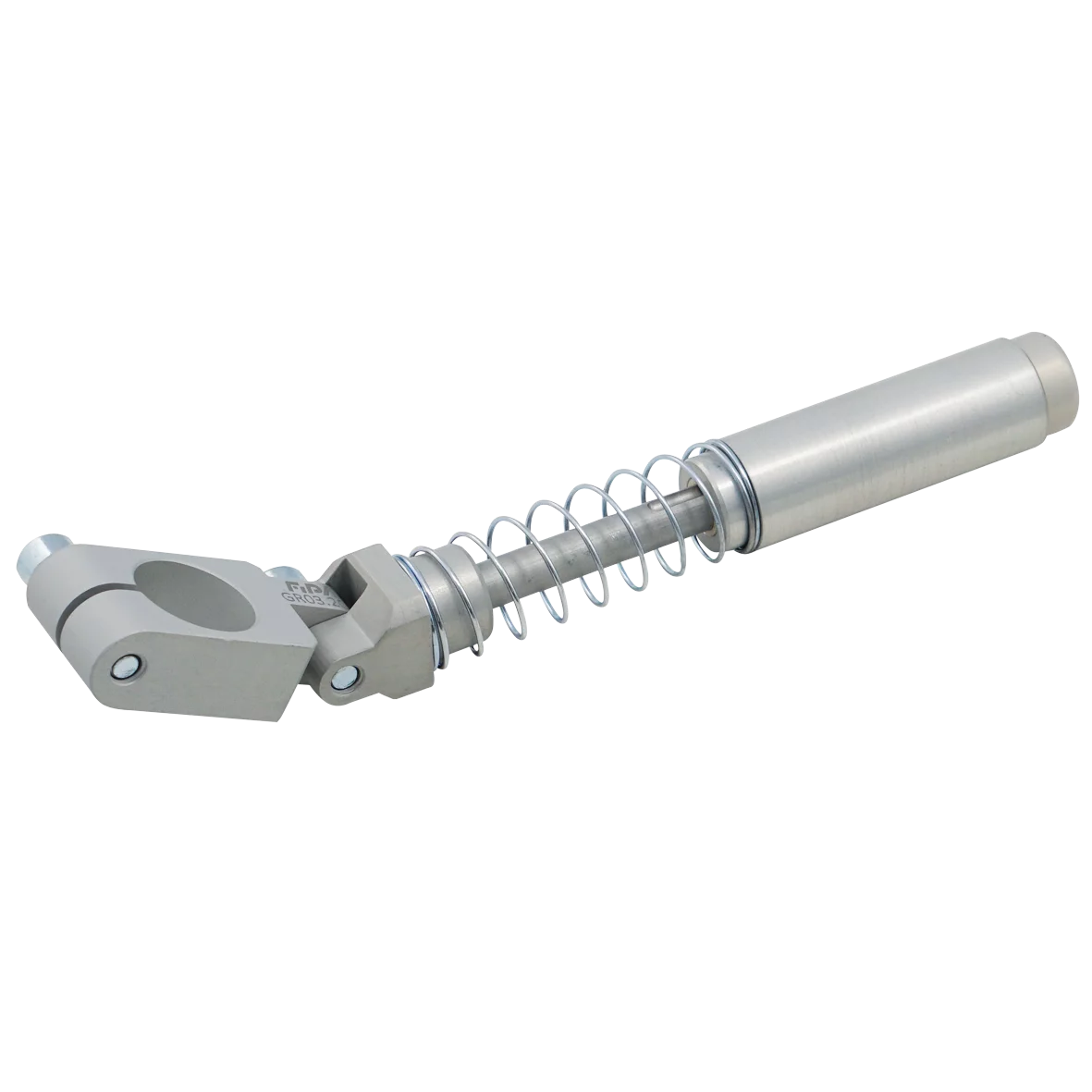

    Product Image
    More items
    Precise functioning even under high load

    Angle-Arm spring-loaded, clamping-diam. 20 mm, shaft-diam. 20 mm, travel 41 mm

    SKU:GR03.204

    Login to see the price
    Loading...
    • Elements for connecting grippers and other gripping elements
    • Guiding through sliding bushes for high precision by absorbing lateral forces and moments
    • Spring compensates for variation in ejection stroke
    Product Dimensional Drawing Image
    DesignationValue
    L55.5 mm
    Ø B20.0 mm
    C25.0 mm
    F40.0 mm
    Ø A20.0 mm
    D185.5 mm
    M47.5 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr03-202-winkelarme-en-master.pdf582.79 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
