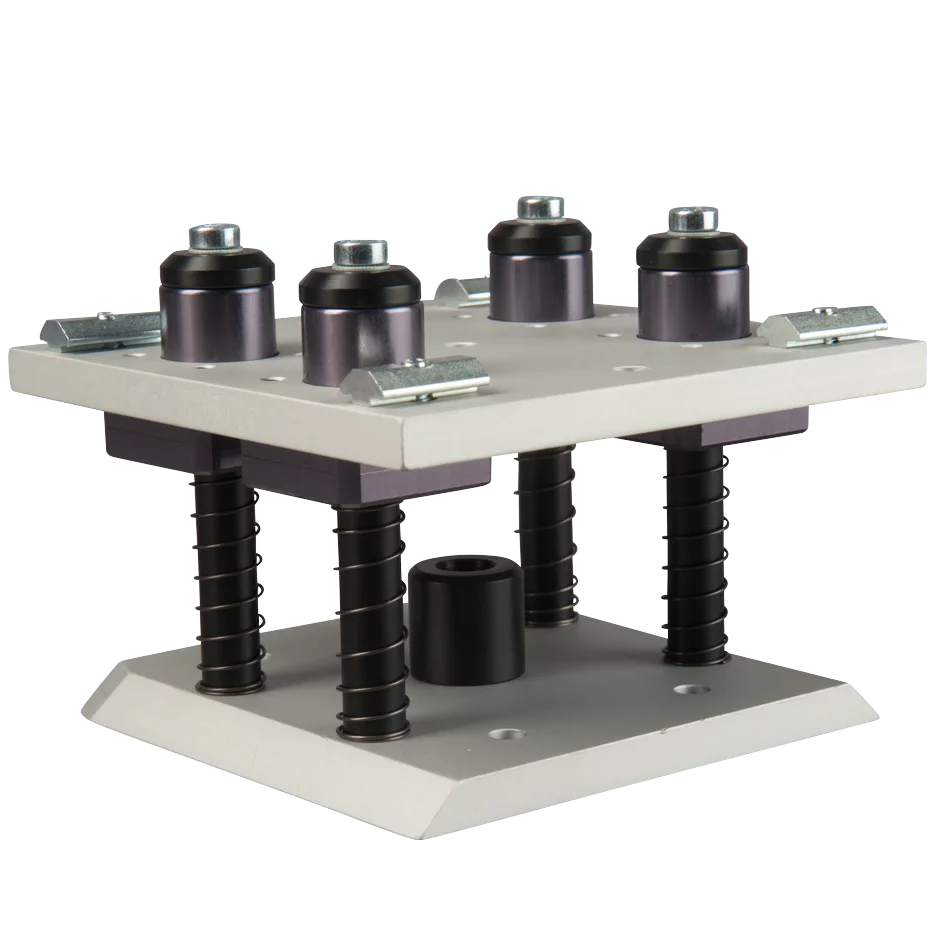

    Gripper base plate, spring loaded for S/MLine, suitable for GR05.021

    SKU:GR05.024

    Login to see the price
    Loading...
    • Spring-loaded base plate for absorbing the ejector stroke during injection molding part removal
    • High-quality plain bearings ensure precise and reliable guidance
    • Spring set with alternative spring rate included to compensate for larger ejector strokes
    • Slot nuts and mounting screws included in the scope of delivery
    Product Dimensional Drawing Image
    DesignationValue
    C65.0 mm
    D30.0 mm
    E86.0 mm
    □ A110.0 mm
    □ B85.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr05-023-greifer-grundplatten-en-master.pdf941.74 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
