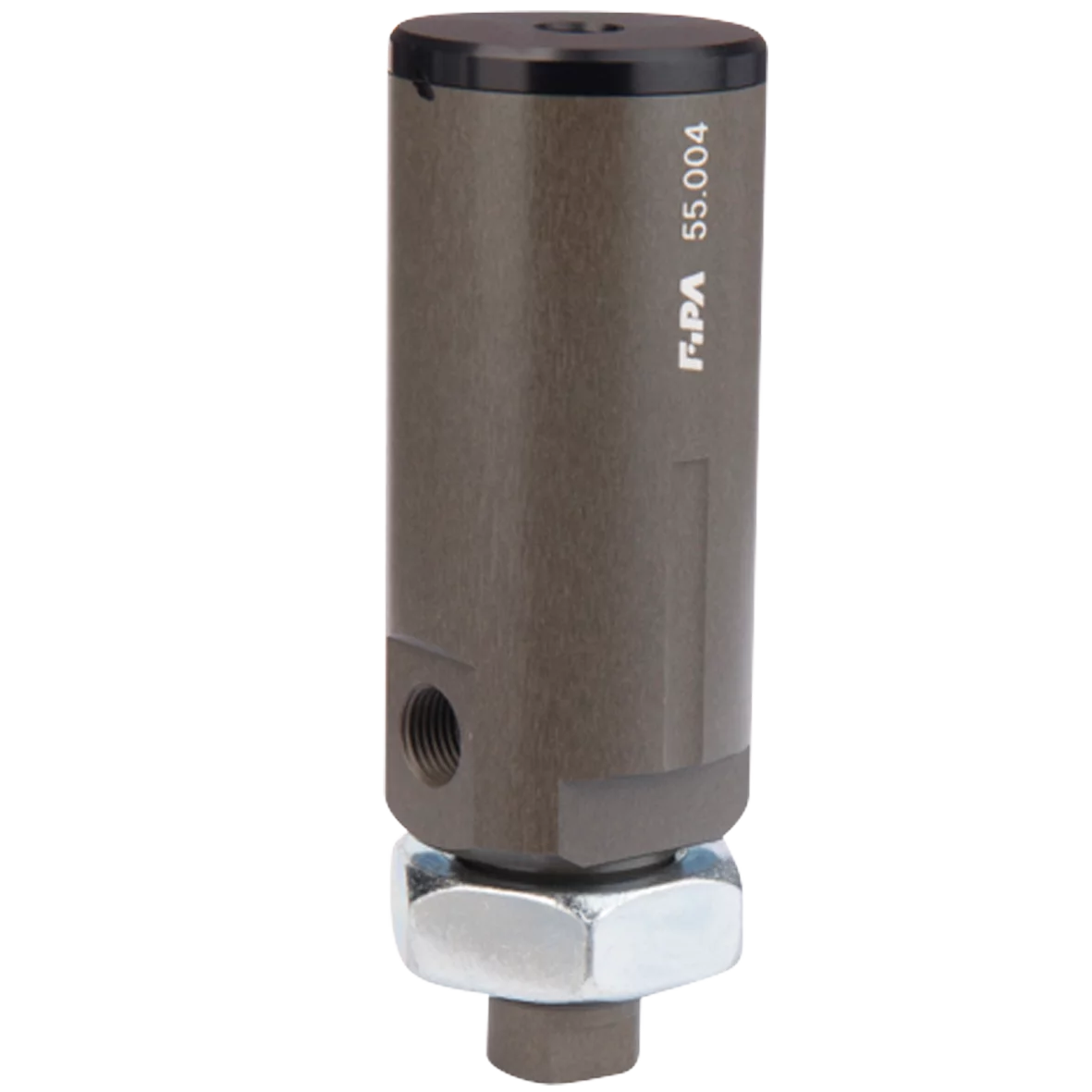

Vacuum lifting cylinder, vacuum-operated, stroke: 40 mm, anti-rotation (hart-coat)

• Stacking and unstacking of flat, delicate workpieces, e.g., signs, cards, paper, or veneers
• Suitable for short cycle times and efficient production processes
• Robust aluminum housing, Hartcoat®-coated for high durability
• Twist-proof piston rod for reliable operation
• Especially low-noise design for quiet working environments
• Version 55.002: also suitable for stacking and lifting sheets or heavy parts
• Not suitable for porous or air-permeable workpieces
• Custom sizes available on request

Function Description:

• Connection to a vacuum generator: The lifting cylinder is supplied with vacuum
• Rapid lift and pick-up: The piston extends, and as soon as the suction cup contacts the workpiece and vacuum is applied, the workpiece is picked up
• Immediate retraction: The piston retracts immediately, so only the top workpiece is lifted without affecting the underlying workpieces
• Secure holding: The workpiece remains held until the vacuum is switched off
