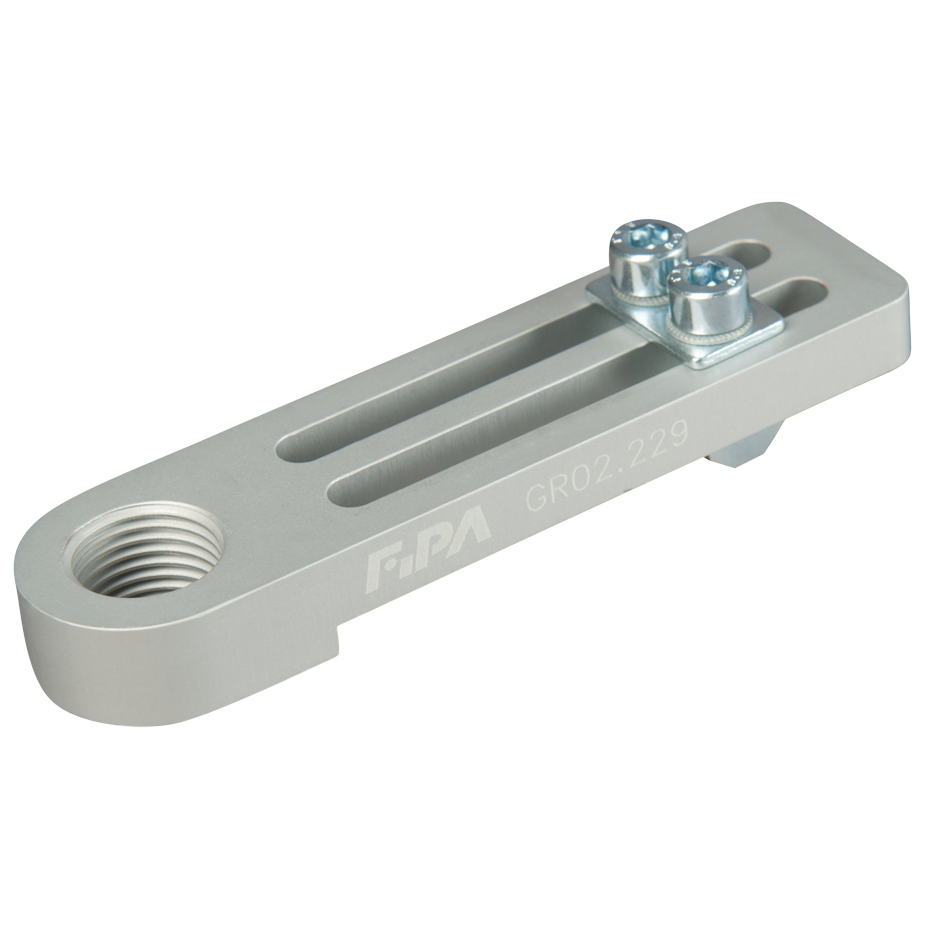

    S/MLine angle connector adjustable thread M16 x 1.5

    Incl. mounting material Also suitable for ID gripper GR04.F233, GR04.F241
    • Threaded mounting brackets for installation the grippers on profiles
    • Threaded mounting bracket enables downward movement of piston of ID gripper, workpiece is pushed
    • Suitable for ID grippers GR04 with index F
    • Slot nuts and mounting screws included in scope of delivery
    Product Dimensional Drawing Image
    DesignationValue
    B99.0 mm
    A26.0 mm
    C21.0 mm
    GM16x1.5
    F8.5 mm
    D55.0 mm
    E12.0 mm
