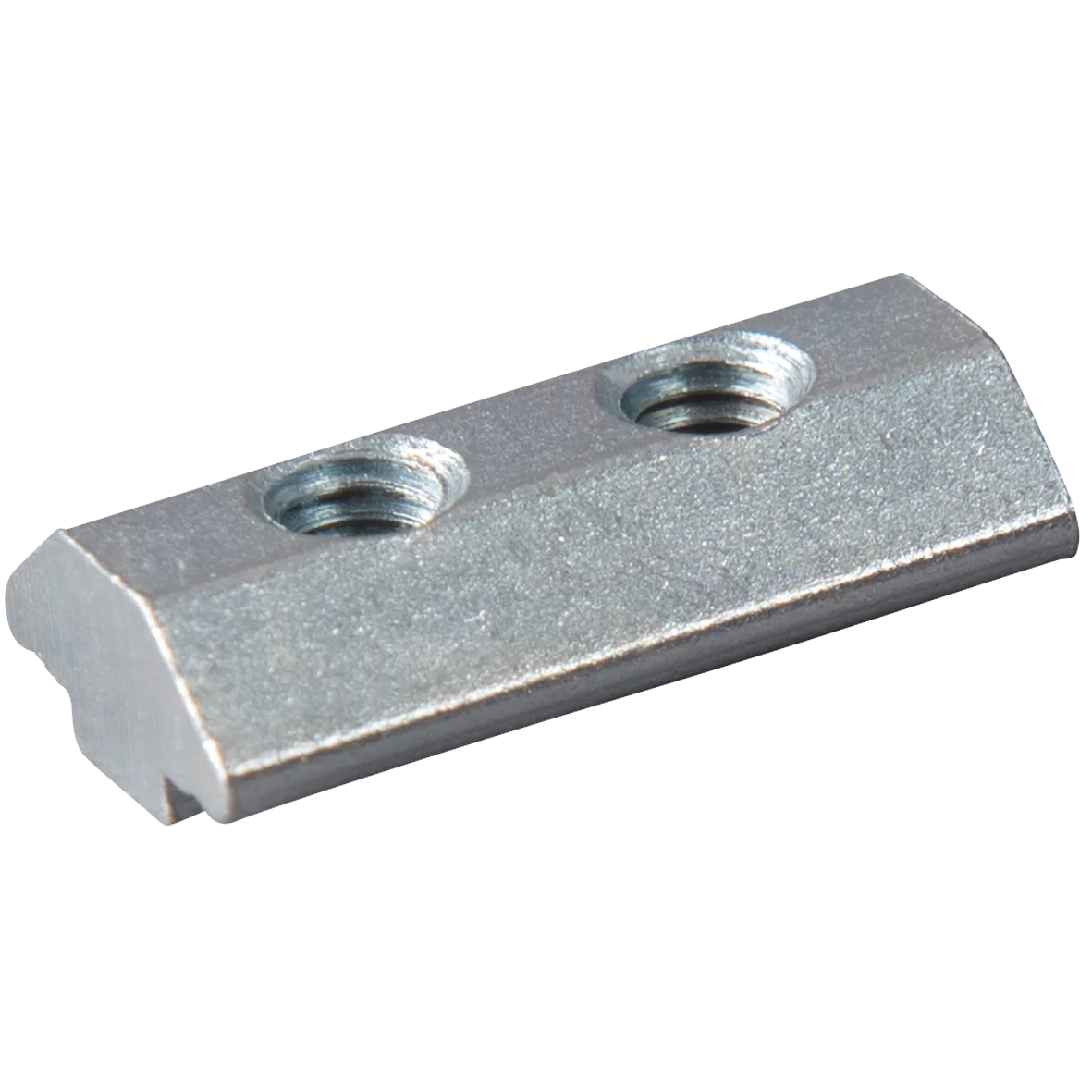

    S/MLine channel nut, without ball, push-fit thread 2x M4, 20 x 10.5, steel

    SKU:GR01.090A

    Login to see the price
    Loading...
    Hole spacing8
    • Galvanized steel slot nuts
    • Ball catch prevents slipping of slot nut during installation
    • Compatible with many third-party extrusions

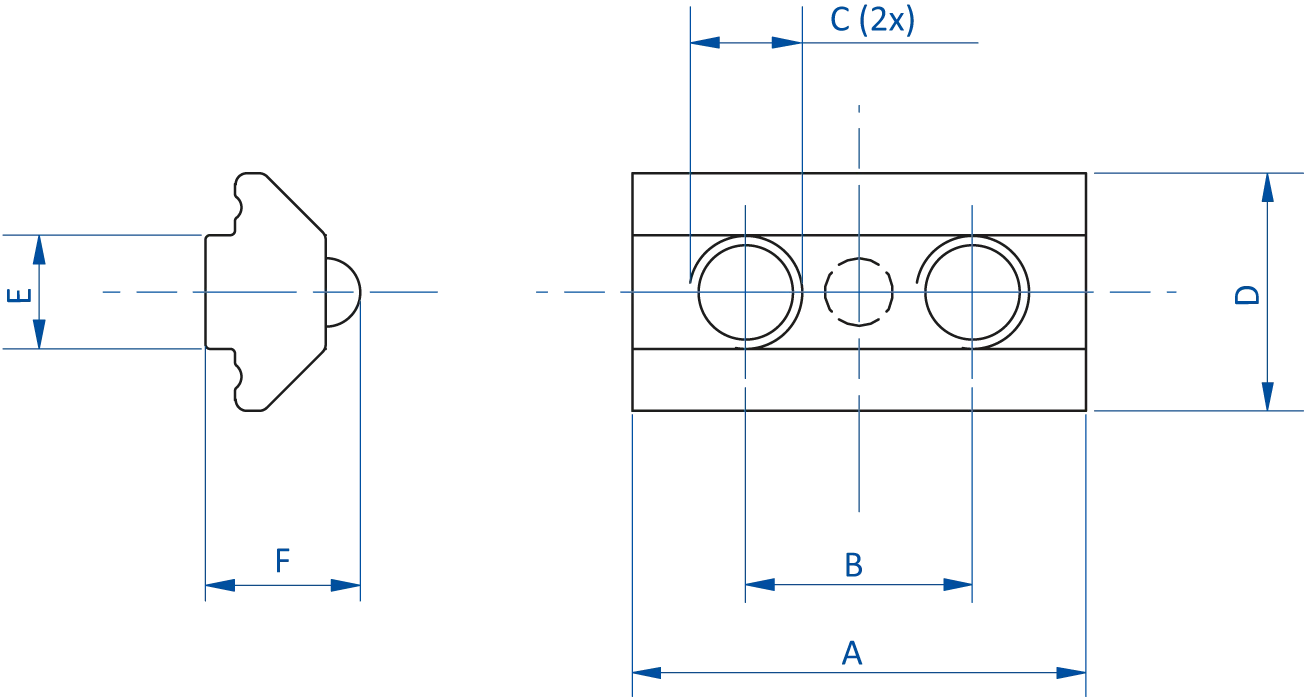

    Product Dimensional Drawing Image
    DesignationValue
    A20.0 mm
    F6.8 mm
    D10.5 mm
    E5.0 mm
    CM4
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr01-088a-nutensteine-en-master.pdf942.4 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
