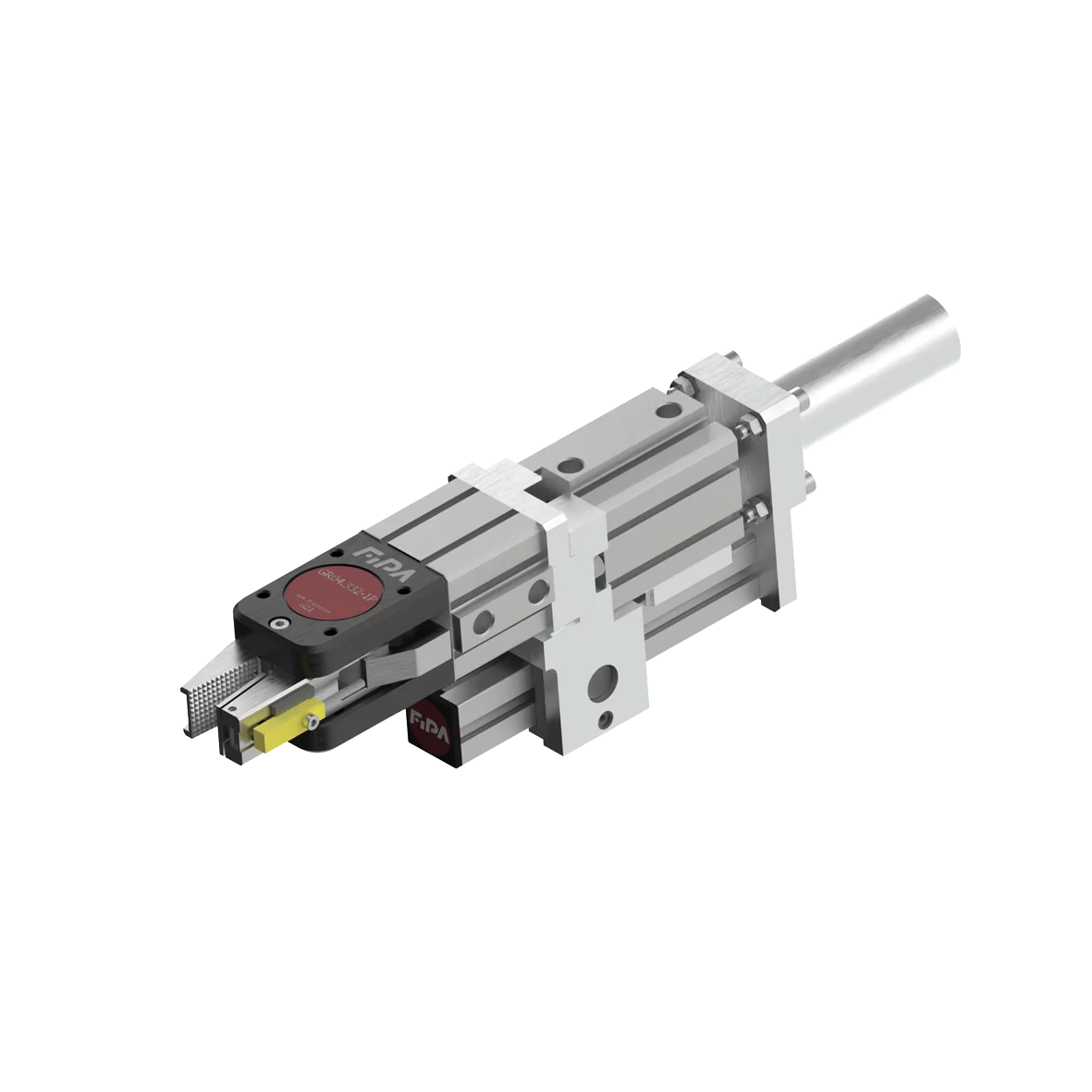

    Series 332 power gripper, single stroke, 40 mm, standard, PNP

    SKU:GR04.332-40-1P

    Login to see the price
    Loading...
    • Strong, double-action power gripper with single or double stroke
    • Ideally suited for matrix removal, especially of large components
    • Optionally available with direct sensor scanning (Sensor with 3-pin male and M8 connector included in scope of delivery)
    • Clamping force measured at the jaw tip
    • The end positions of the lifting cylinders can be sensed with optional sensors
    • Optional stroke limiters are available for easy adjustment of the cylinder stroke
    • Standard clamping diameter Ø 30 mm, available on request with clamping diameter Ø 20 mm
    • Other customer-specific designs or adaptations are possible and easy to implement – please contact our sales department

    Jaw

    Jaw
    Product Dimensional Drawing Image
    DesignationValue
    Ø D30.0 mm
    B94.5 mm
    A348.0 mm
    C57.0 mm
    F11.0 mm
    E74.0 mm
    A*388.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr04-332-kraftgreifzangen-mit-hub-en-master.pdf1.11 MB Download
    Sprue-gripper-jaw_overview_en.pdf715.41 KB Download
