    Product Image
    More items
    Heat resistant & low marking

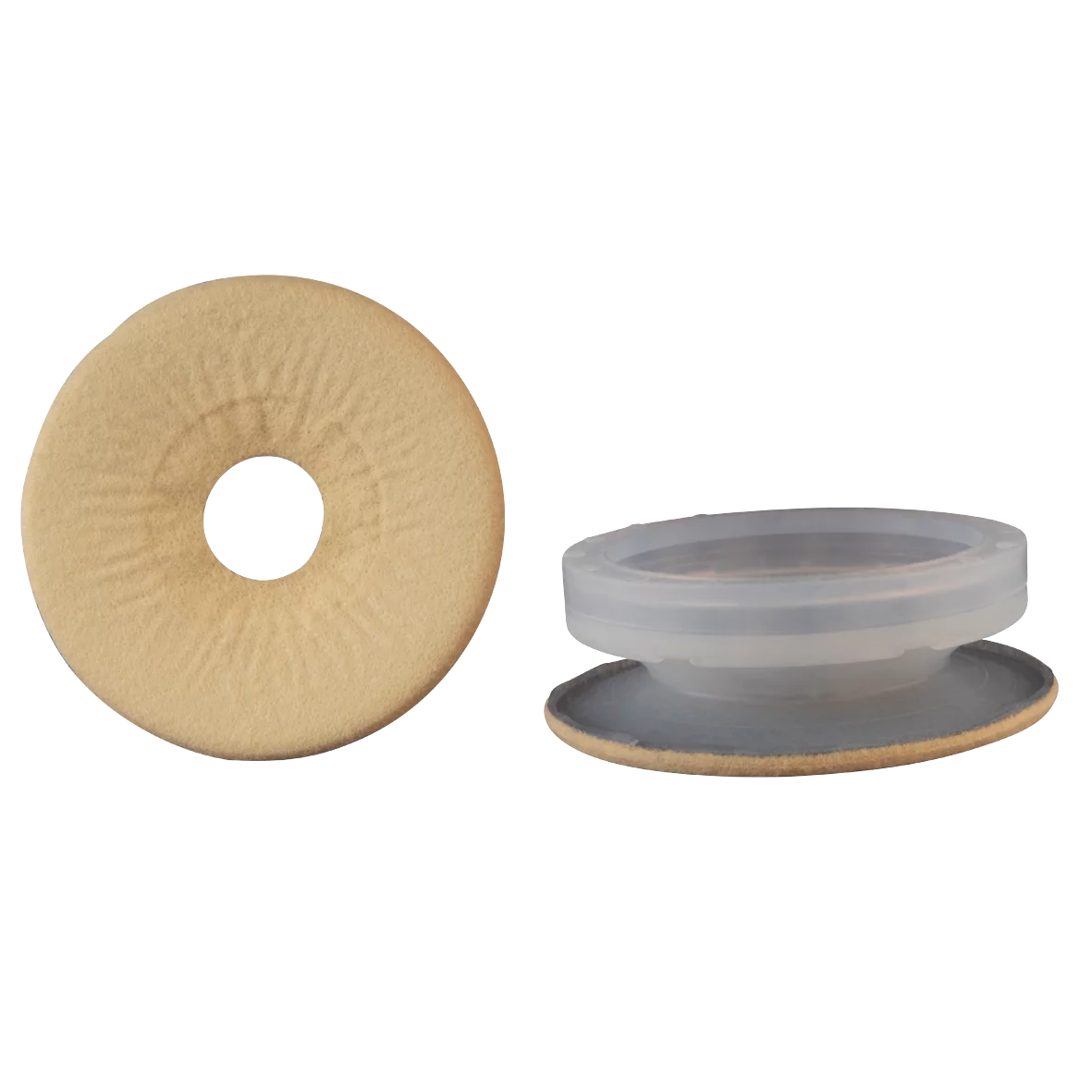

    vacuum cup with felt coating diam. 90 mm Silicone, center hole

    SKU:26.090.001.2F

    Login to see the price
    Loading...

    Product notes

    Almost mark-free special vacuum cup for high temperature requirements, e.g. in the glass industry.
    Special felt pad vulcanized to elastomer carrier. Migration of silicone particles is prevented by vapour-deposited aluminum layer.
    Connection up to Ø 70 mm by means of plug-in nipple, from Ø 90 mm with bolted bracket plate.

    Advantage

    • Temperature-resistant up to 500 °C (932 °F) (SI)
    • Almost mark-free
    • Cost-effective replacement of worn seals

    Hint:

    There is a small leak at first use resulting from the texture of the special felt, but after a brief period of use this will be significantly reduced by the thickening of the felt layer.

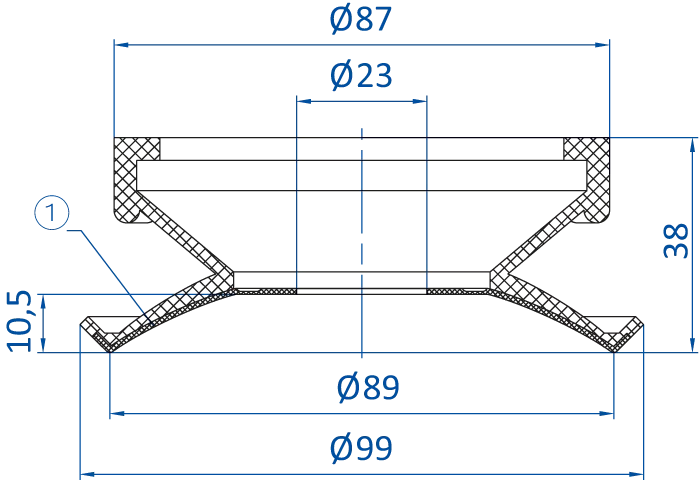

    Product Dimensional Drawing Image
    DesignationValue
    DrawingB
    Ø D89.0 mm
    Ø d187.0 mm
    Ø d599.0 mm
    H38.0 mm
    h310.5 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sx-f-vakuumsauger-temperaturbestaendig-en-master.pdf1.03 MB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
