    Product Image
    More items

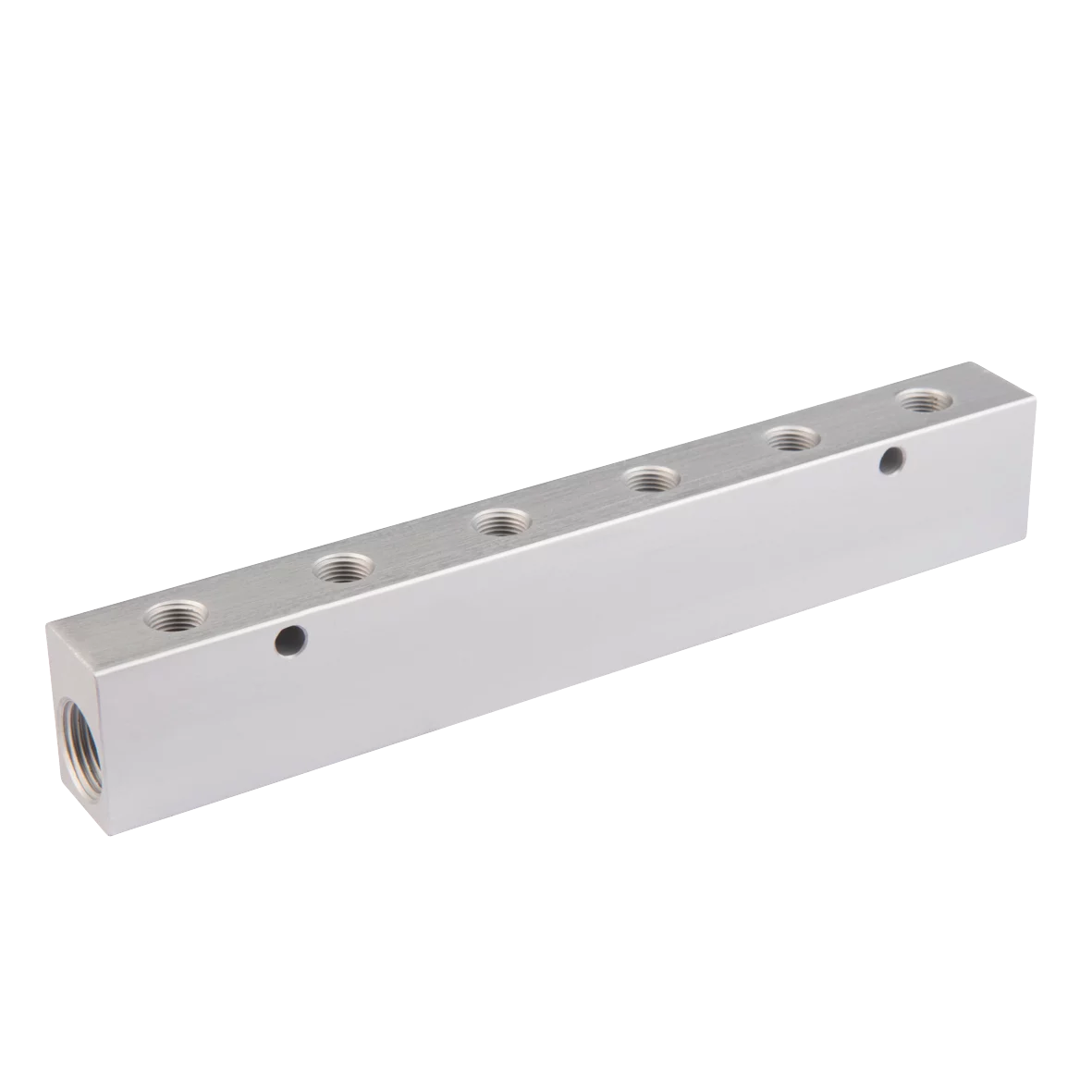

    Manifold bar, length: 186 mm thread 2x G3/8, 6x G1/8, aluminum

    SKU:79.011

    Login to see the price
    Loading...
    • Construction of vacuum systems by means of simple installation of push-in fittings or quick fittings
    • Material: aluminum
    Product Dimensional Drawing Image
    DesignationValue
    H25.5 mm
    G1G3/8
    G2G1/8
    L186.0 mm
    B18.0 mm
    A30.0 mm
    C30.0 mm
    D20 mm
    E33 mm
    Ø F5.2 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    79.000-Manifolds_datenblatt_en.pdf956.74 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
