    Product Image
    More items

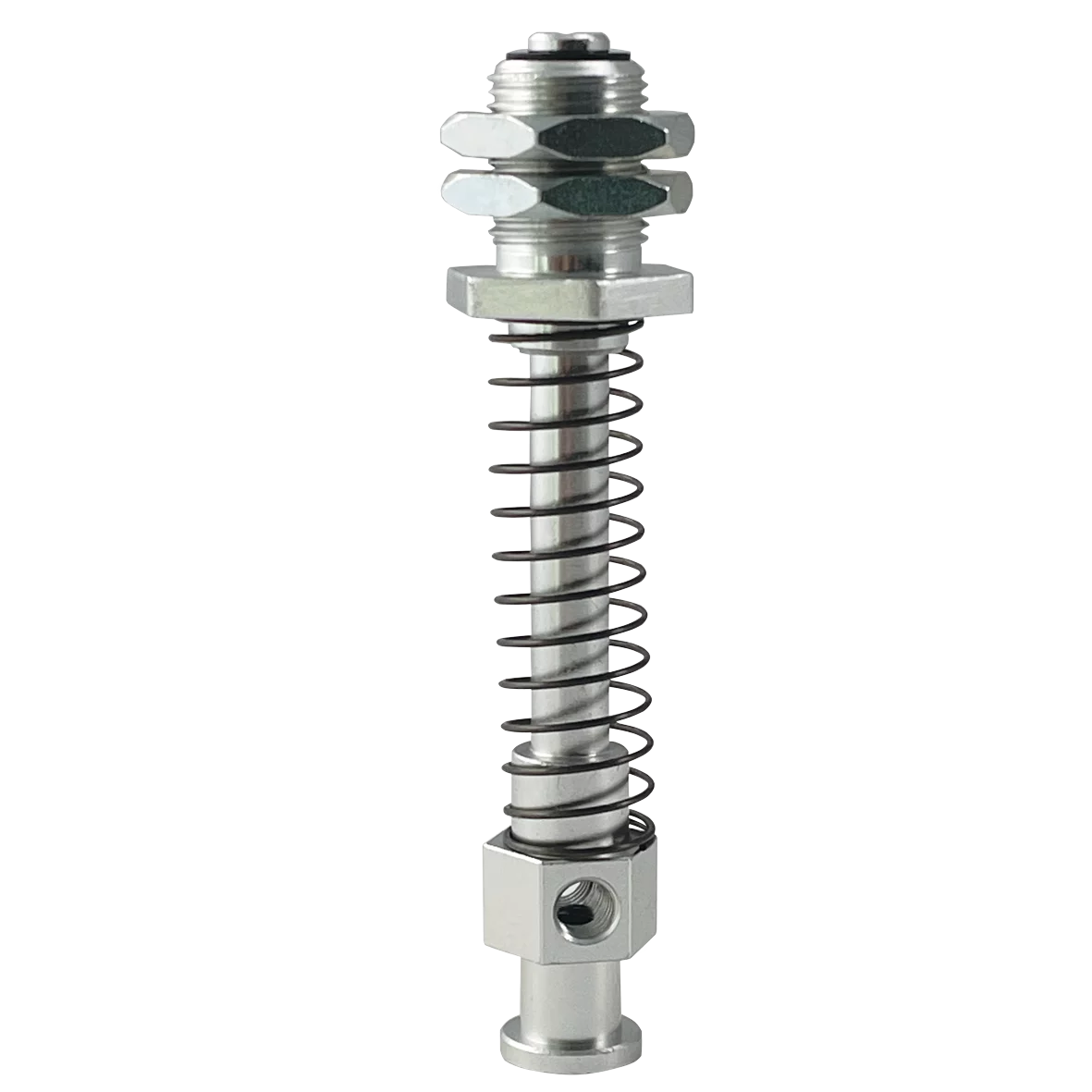

    Spring leveler for direct suction cup mounting stroke 30 mm, spring open, Aluminum

    SKU:50.146

    Login to see the price
    Loading...
    • Direct mounting of the spring leveler on the vacuum cup, no additional fitting required
    • Compensate for height differences
    • Soft attachment for sensitive products
    • Leveling with an open spring
    Product Dimensional Drawing Image
    DesignationValue
    Ø d28.0 mm
    H68.0 mm
    G1M5
    Ø d311.0 mm
    h315.0 mm
    SW117.0
    C30.0 mm
    G3M12
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sz-niv-da-federstoessel-en-master.pdf719.82 KB Download
    Spring-levelers-Overview_en.pdf1001.34 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
