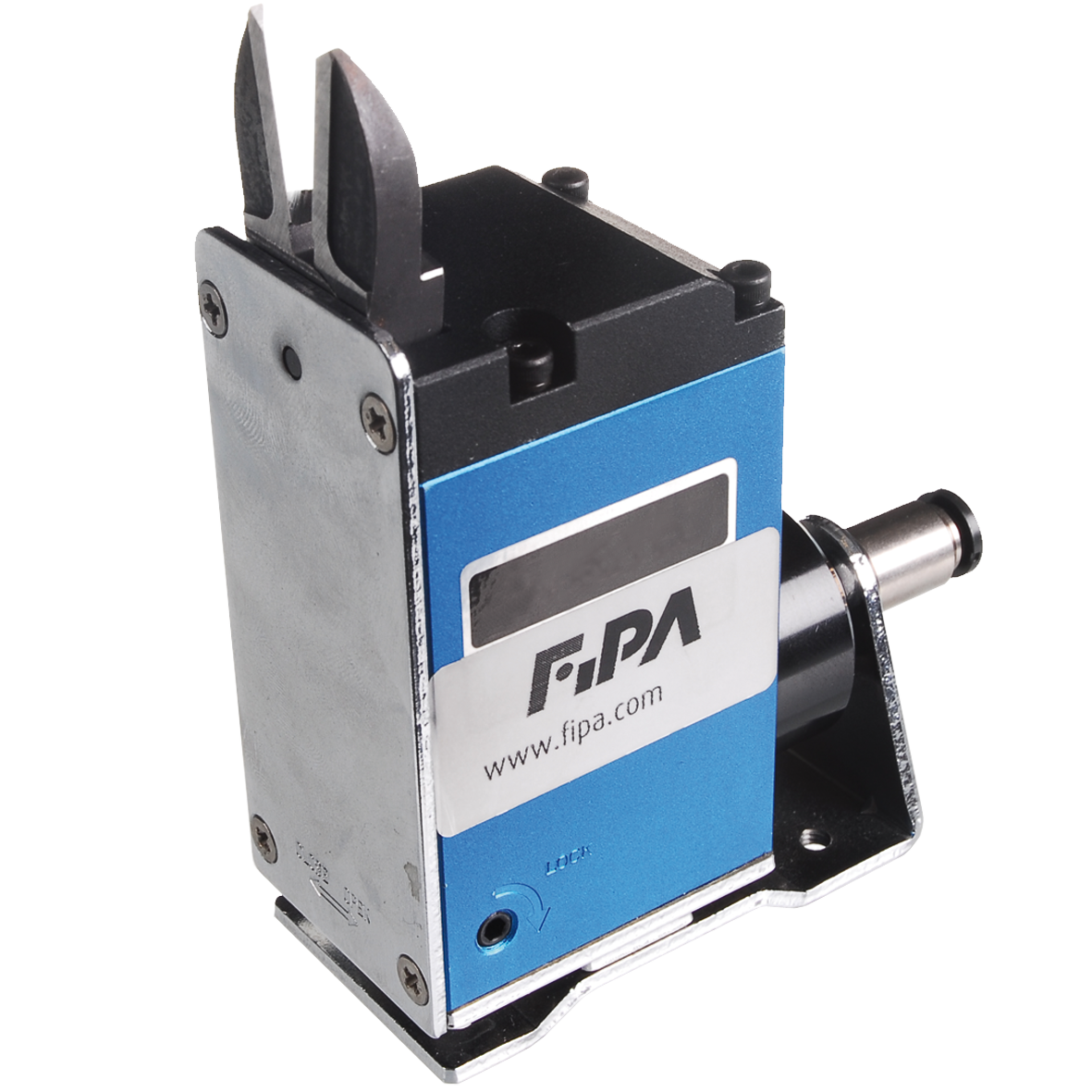

    Product Image
    Adjustable blade opening and reversable blades

    Air nipper for plastic - vertical, with stroke without cutting insert

    Cutting force: 196 N Compressed air connection P: diam. 4x2.5 mm Max. cutting aperture: 6 mm Max. stroke: 3 mm Operating pressure: 4-5 bar Effective direction: Pull
    • Lightweight, compact cutting nippers for space-saving installation
    • Suitable for use in cutting stations and automated systems
    • Stroke and maximum cutting opening adjustable separately
    • Reversible cutting inserts ensure consistently flush cuts on the workpiece
    • Maximum cutting opening “I” applies to cutting inserts with index “AJ”
    • Cutting inserts not included, please order separately
    Product Dimensional Drawing Image
    DesignationValue
    HM4
    B32.0 mm
    A64.0 mm
    C71.1 mm
    F45.0 mm
    D9.0 mm
    E7.0 mm
    G20.0 mm
    I6.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gt-nt03-schneidzangen-stationaer-en-master.pdf642.61 KB Download
    Here you can find all documents about this product.
