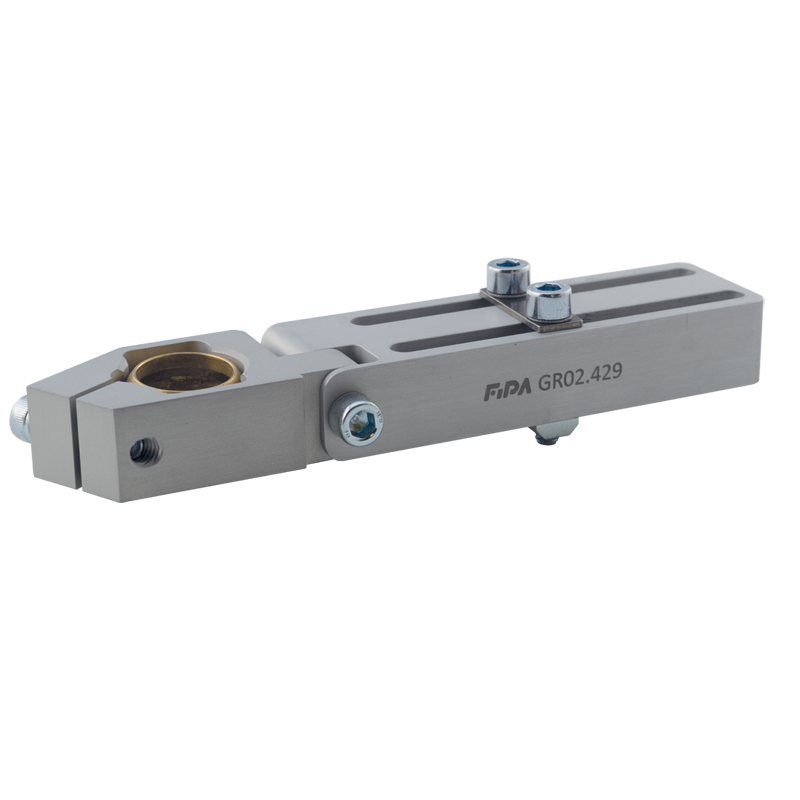

M/JLine angular clamp, long, heavy-duty, with swivel head and ball joint, clamping-Ø 20 mm
Wide angular adjustment with a single clamp
| Designation | Value |
|---|---|
| H | 8.2 mm |
| B | 35 mm |
| C | 172 mm |
| F | 19 mm |
| Ø A | 20 mm |
| D | 20 mm |
| E | 82 mm |
| G | 29.5 mm |
Here you will find all available documents, such as data sheets, certificates, and much more.
| File | Filesize | Actions |
|---|---|---|
| datasheet-bds-fipa-gr02-427-winkelklemmstuecke-schwenkkopf-en-master.pdf | 0 | Download |
Here you can find all documents about this product.
Please login to download CAD files
CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
