    Product Image

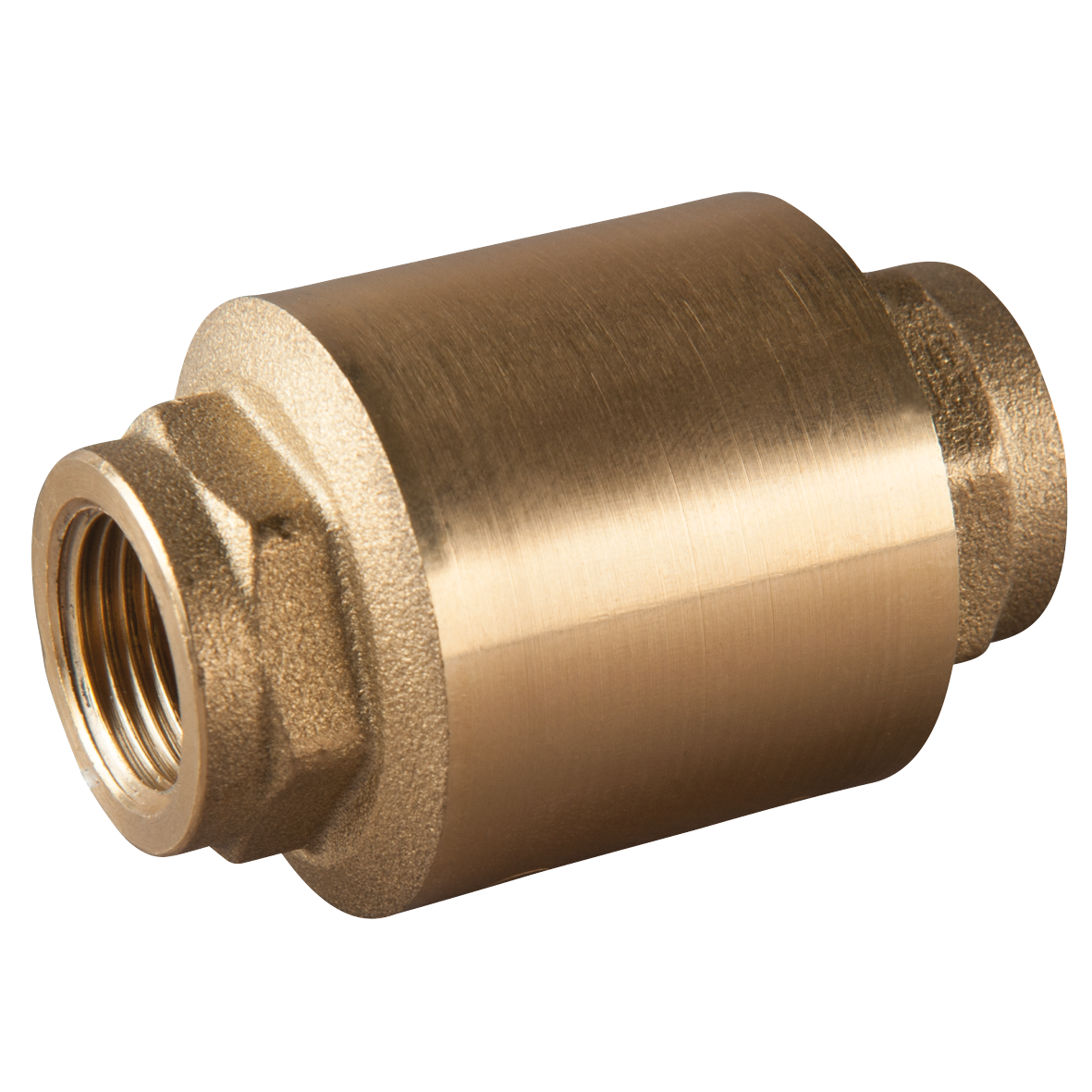

    Non-return valve for very high volume flows, connection G3/8-female

    • Maintains vacuum level in suction systems in case of vacuum generator failure
    • Installable between vacuum pump and reservoir
    • Prevents oil backflow into the vacuum system for pumps without built-in check valves
    • Any installation orientation for flexible mounting
    • Brass with oil-resistant seals
    Product Dimensional Drawing Image
    DesignationValue
    SW23.0
    A55.0 mm
    Ø B35.0 mm
    GG3/8
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-32-647-rueckschlagventile-en-master.pdf502.18 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
