    Especially for strongly curved surfaces

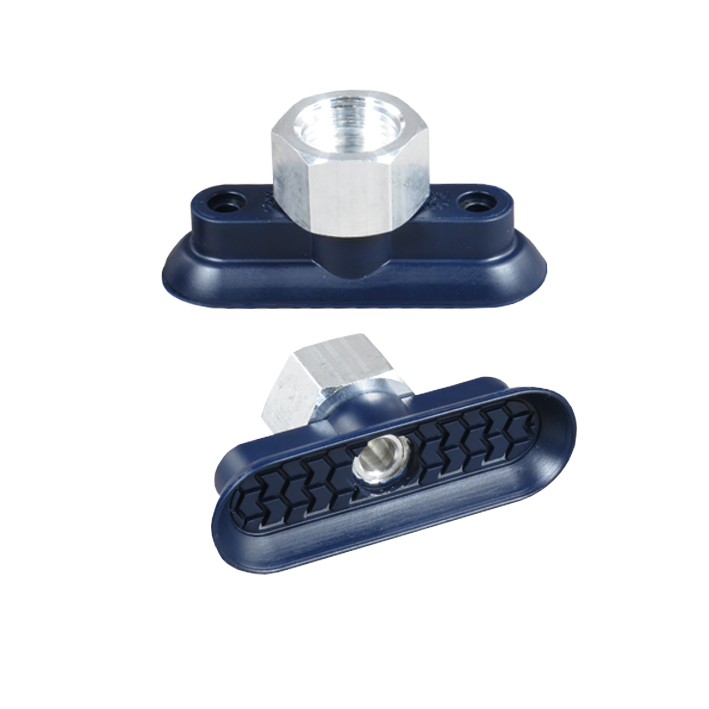

    Bell shaped oval vacuum cup 60x20 mm NBR blue, with fitting G3/8-female

    SM-OG-60x20-NBR60-G3/8-F 60° Shore

    Flexible, oval NBR bell shaped cup, 60° Shore A with vulcanized fitting made of aluminum for best adaptation to strongly curved metal sheets. Large area "anti-slip" cleats, various connection threads available.
    PWIS-conform to guideline VDMA 24364 test category A1.

    • Reliable, non-slip handling of oily sheets due to "anti-slip" cleats. Good absorption of lateral forces.
    • Ideally suited for use in constricted spaces
    • Supports help to prevent deep-drawing or deformation of thin sheets
    • Leak-free suction even with strongly curved surfaces due to very flexible sealing lip
    • Vulcanized connection thread ensures a secure fit
    Product Dimensional Drawing Image
    DesignationValue
    DrawingB
    H28.0 mm
    Ø dn6.0 mm
    h15.0 mm
    G1 (female)G3/8
    G2 (male)--
    L61.5 mm
    B21.0 mm
    L max.*67.0 mm
    B max.*27.0 mm
