    3/2 way solenoid valve for vacuum, NO/NC, spring return, IXEF

    SKU:36.815

    Login to see the price
    Loading...
    • Ideal for the setup of pneumatically controlled vacuum systems
    • Valve control requires no electrical connection – fully pneumatic operation
    • Functions: Vacuum ON/OFF, venting, or blow-off
    • High flow rate in a compact design for short evacuation times and rapid vacuum buildup
    • Short switching times for fast and efficient process cycles
    • Workpiece retention during power failure (NO)
    • NC/NO function – connections for vacuum supply and blow-off/venting can be interchanged

    Wiring diagrams

    Wiring diagrams
    36.810 | 36.811

    Wiring diagrams

    Wiring diagrams
    36.815 | 36.820 | 36.825 | 36.335 | 36.336 | 36.340 | 36.341

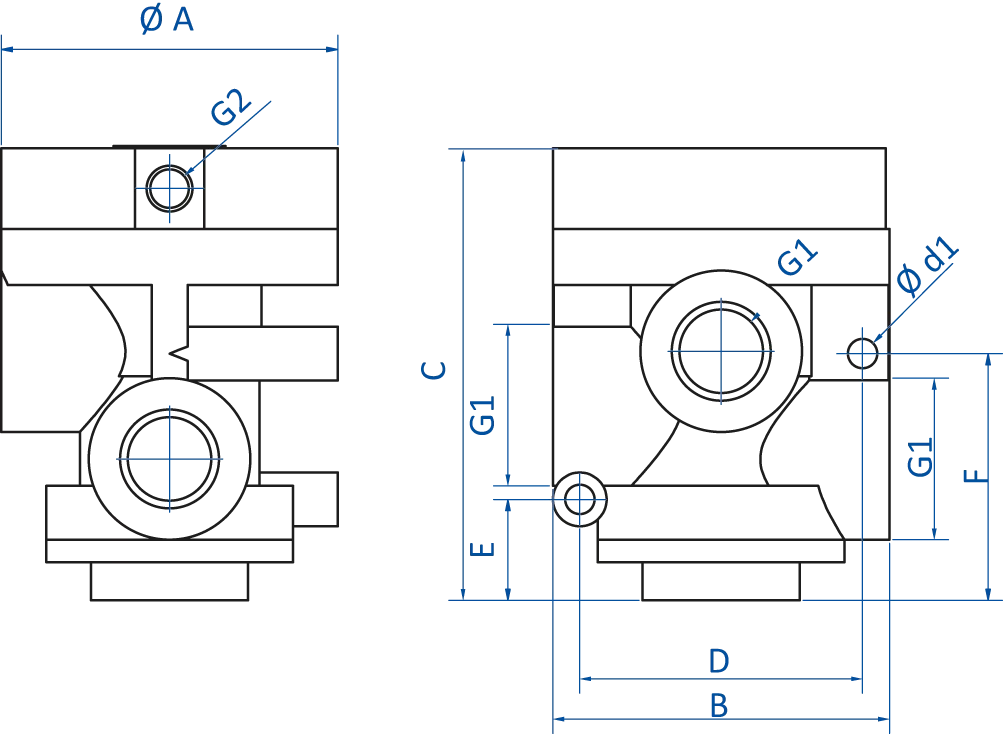

    Product Dimensional Drawing Image
    DesignationValue
    G1G1/2
    G2G1/8
    B75.0 mm
    C101.0 mm
    F55.0 mm
    E22.5 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    36.810-Vacuum-valve_datenblatt_en.pdf1.22 MB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
