High precision cylinder guiding, anti-twist protection

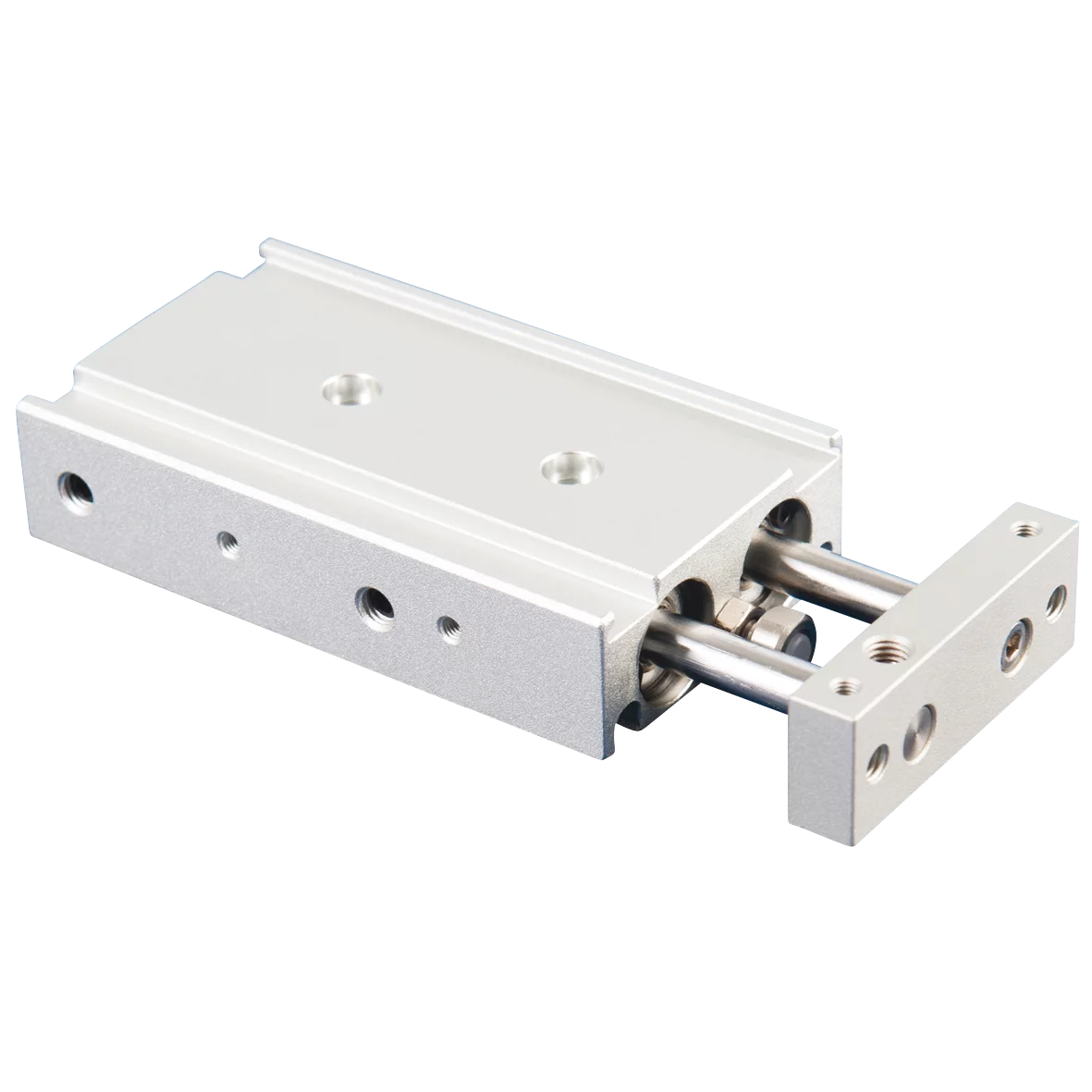

Double piston cylinder, piston diam.16 mm, double acting, stroke 100 mm
SKU:GR07.116-100
Login to see the price
- Unit to precisely guide gripper components such as vacuum cups to the workpiece
- Double-acting, separate compressed air connections for extraction and rectraction
- Sensors for optional detection of piston position (extracted/retracted)
- PNP and NPN sensors:
- C-slot (90° angle): GR04.202P, GR04.202N
- C-slot (straight, short design): GR04.280P, GR04.280N
- Medium: filtered and oiled/unoiled air
Theoretical cylinder force depending on the working pressure
| Designation | Value |
|---|---|
| H | M4x5 |
| L | 9.5 mm |
| B | 58.0 mm |
| G | M5x0.8 |
| D | 20.0 mm |
| E1 | 30.0 mm |
| E2 | 38.5 mm |
| D1 | 18.0 mm |
| K | M5 |
| F1 | 45.0 mm |
| N | M4x6 |
| C1 | 160.0 mm |
| C2 | 10.0 mm |
| F2 | 114.0 mm |
| F3 | 55.0 mm |
| B1 | 58.0 mm |
| F4 | 25.0 mm |
| M | M5 |
| Ø R | 8x4.4 |
| C | 179 - 279 mm |
