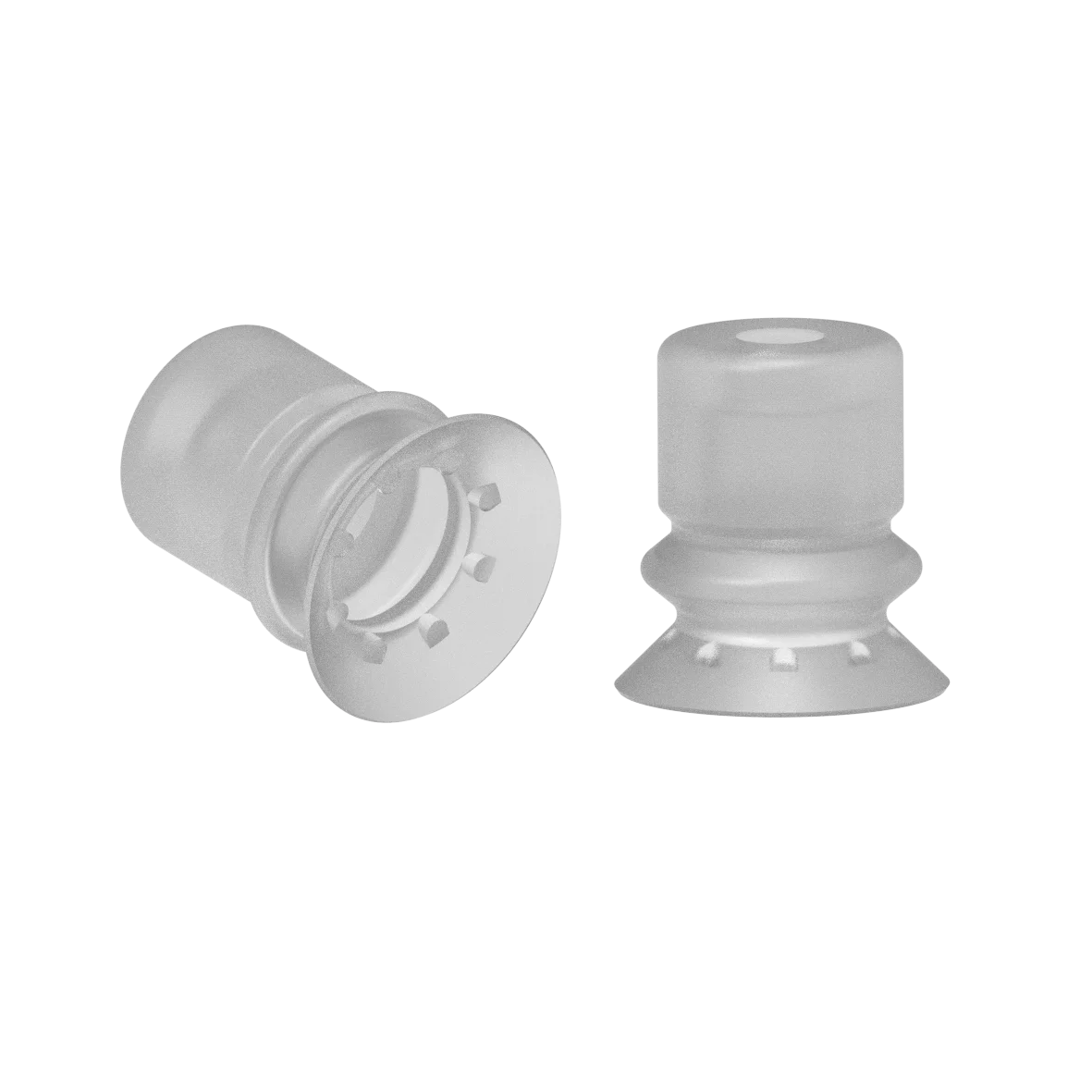

    Bellows vacuum cup diam. 15 mm (1.5 bellows) silicone transparent

    SKU:23.015.292.2

    Login to see the price
    Loading...

    Bellows vacuum cup with soft, very flexible single sealing lip for handling highly sensitive products with high leveling adjustment.
    Connection with plugged, or fixed screwed nipple or attachment frame (Ø 80 mm). Compatible "snap-in" spring leveller available.

    • Large holding force
    • Fine, flexible sealing lip fits in perfectly with irregularities of the product
    • Cleats for the sealing lip prevent retraction of flexible products (e.g. films)
    • Cost-effective replacement of worn seals
    • High process reliability due to fixed, non-rotating seat of the screw nipple

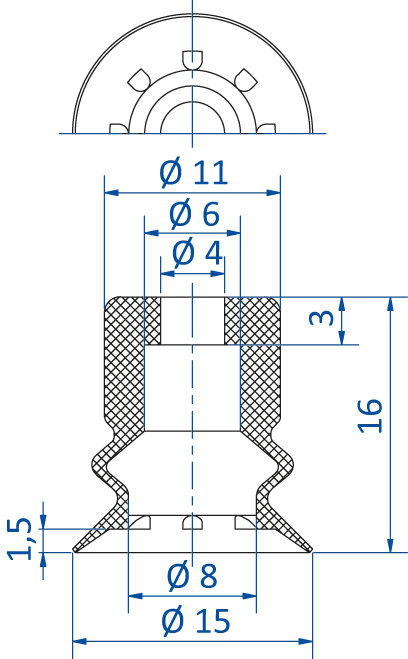

    Product Dimensional Drawing Image
    DesignationValue
    DrawingB
    Ø D15.0 mm
    Ø d111.0 mm
    Ø d24.0 mm
    Ø d48.0 mm
    H16.0 mm
    Ø d36.0 mm
    h13.0 mm
    G2 (male)--
    h31.5 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sbf-a-balgsauggreifer-en-master.pdf983.85 KB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
