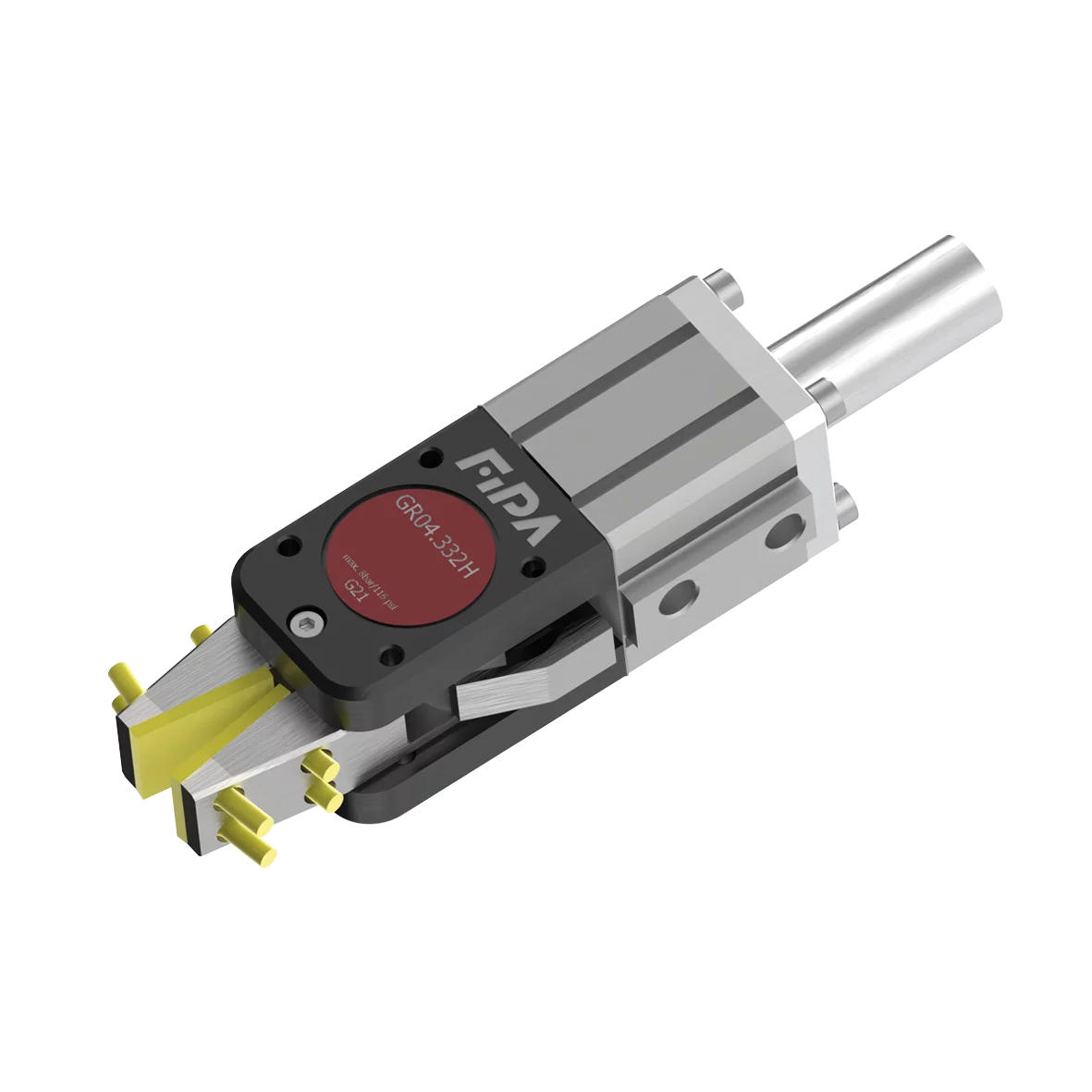

    Product Image
    More items

    Series 332 power gripper, with HNBR pads, without sensor

    SKU:GR04.332H

    Login to see the price
    Loading...
    • Strong, double-action power gripper
    • Ideally suited for demoulding large components in particular
    • Optionally available with direct sensor scanning (Sensor with 3-pin male and M8 connector included in scope of delivery)
    • Clamping force measured at the jaw tip
    • The end positions of the lifting cylinders can be sensed with optional sensors
    • Standard clamping diameter 20 mm, available on request with clamping diameter 30 mm.
    • Other customer-specific designs or adaptations are possible and easy to implement – please contact our sales department

    Jaw

    Jaw

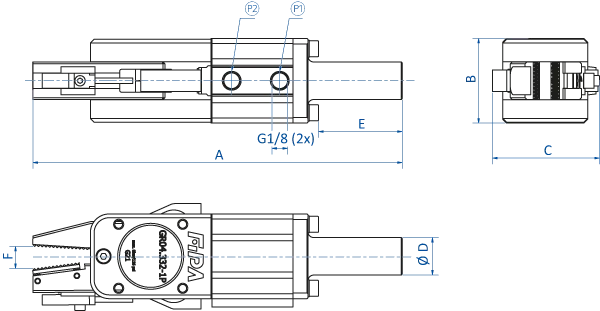

    Product Dimensional Drawing Image
    DesignationValue
    Ø D20.0 mm
    B94.05 mm
    A197.0 mm
    C56.0 mm
    F11.0 mm
    E44.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-gr04-332-kraftgreifzangen-ohne-hub-en-master.pdf851.79 KB Download
    Sprue-gripper-jaw_overview_en.pdf715.41 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
