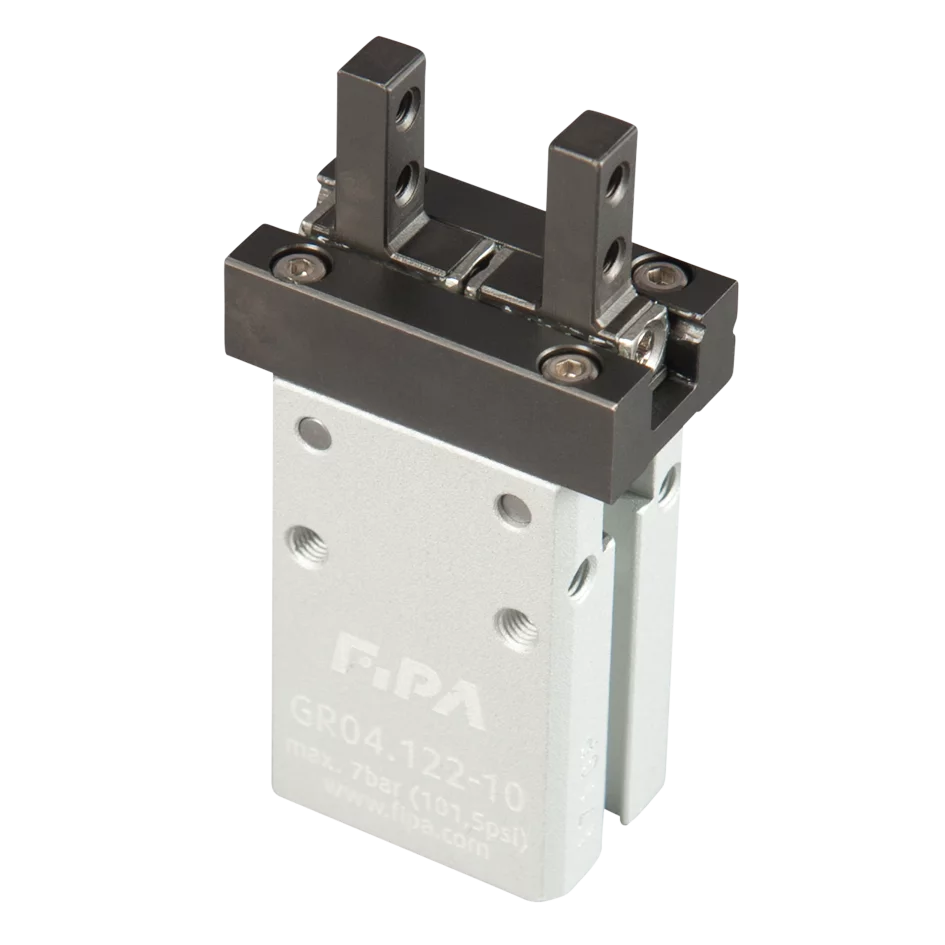

2-finger parallel gripper, piston-Ø 10 mm, total stroke 4 mm, double-acting
SKU:GR04.122-10
Login to see the price
- Gripper with high gripping force
- Double-acting for inside/outside gripping and short duty cycles
- Single-acting: normally open (NO), compressed air for closing, opening via return spring
- Body made of high-strength aluminum alloy, jaws are steel
- Options
- Base jaws for customization
- Sensors for monitoring gripper action via piston position - Medium: filtered and oiled/unoiled air
- PNP and NPN sensors:
- C-slot (straight): GR04.198, GR04.198/NPN
- C-slot (90° angle): GR04.202P, GR04.202N
- C-slot (straight, short design): GR04.280P, GR04.280N
- T-slot (straight): GR04.199, GR04.199/NPN
- T-slot (straight, short design): GR04.203P, GR04.203N - Connector cable for sensors:
- 20.503: 3-pole M8, cable straight, length 2,500 mm, open wire
- 20.507: 3-pole M8, cable 90°, length 2,000 mm, open end
- 20.570: 3-pole M8, length 1,500 mm, end with plug 3-pole M8
Distance to gripping point (* see diagrams)
| Designation | Value |
|---|---|
| H | 5.0 mm |
| L | 12.0 mm |
| B | 29.0 mm |
| C | 57.0 mm |
| G | M3 |
| D | 16.4 mm |
| E | 23.0 mm |
| J | 3.0 mm |
| R | M3 |
| I | 4.0 mm |
| K | 5.7 mm |
| A1 | 15.2 mm |
| A2 | 11.2 mm |
| F | M2.5 |
| M | 18.0 mm |
| N | 12.0 mm |
| U | 7.6 mm |
| T | 5.2 mm |
| Ø S | 2.0 mm |
