    Product Image
    More items

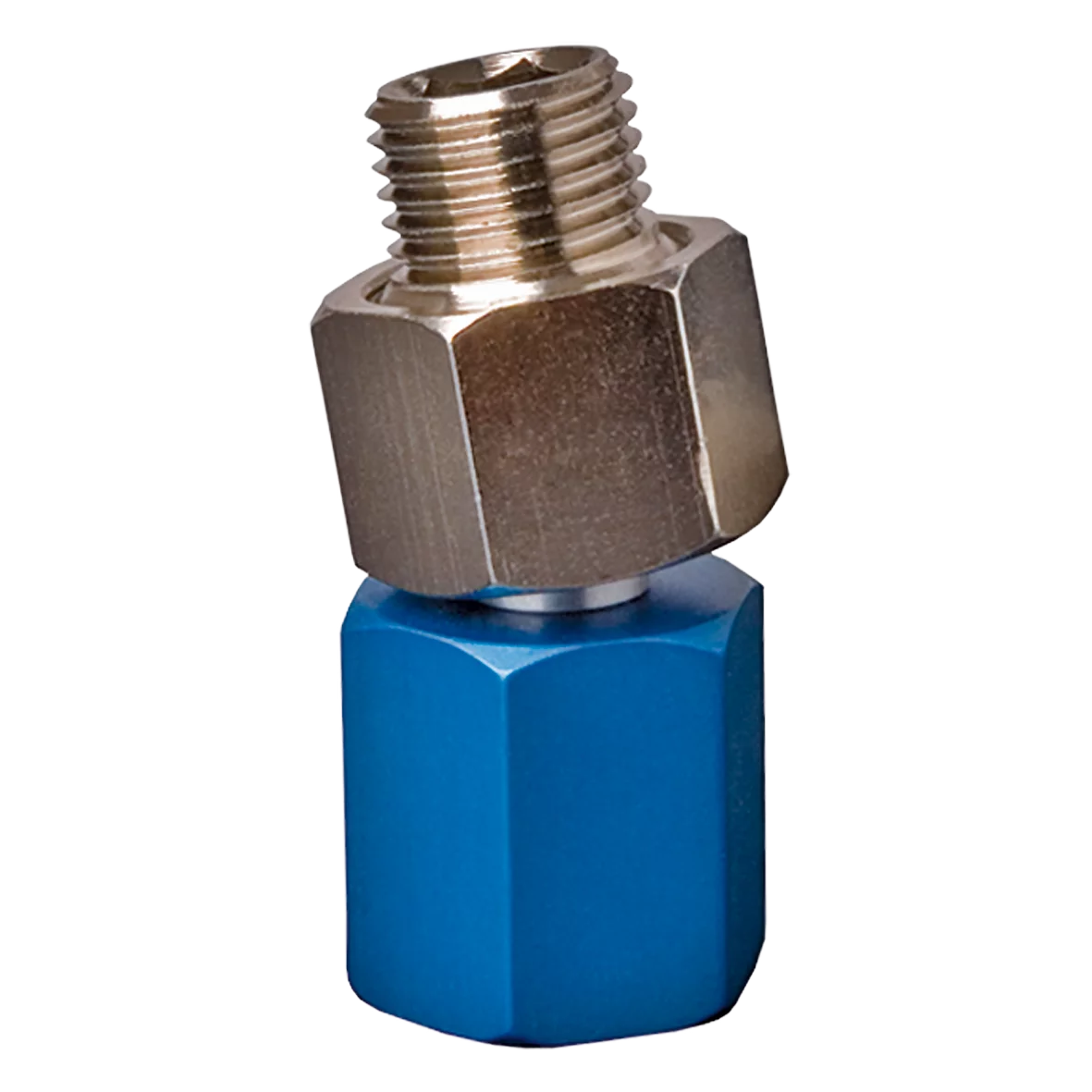

    Fitting (flexible joint) G1/2-female, 1/2-male

    SKU:270.075

    Login to see the price
    Loading...
    • Universal articulating mount for vacuum cups allows compensation for sloping product surfaces
    • Angle compensation for sagging products, such as sheet goods
    • Version: Ball and socket with O-ring seal
    Product Dimensional Drawing Image
    DesignationValue
    H38.5 mm
    h211.5 mm
    Ø dn4.0 mm
    G1G1/2
    h114.0 mm
    G2G1/2
    S2x15
    SW26
    SW124.0
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sz-gkg-kugelgelenke-en-master.pdf414.93 KB Download
