Strong holding force

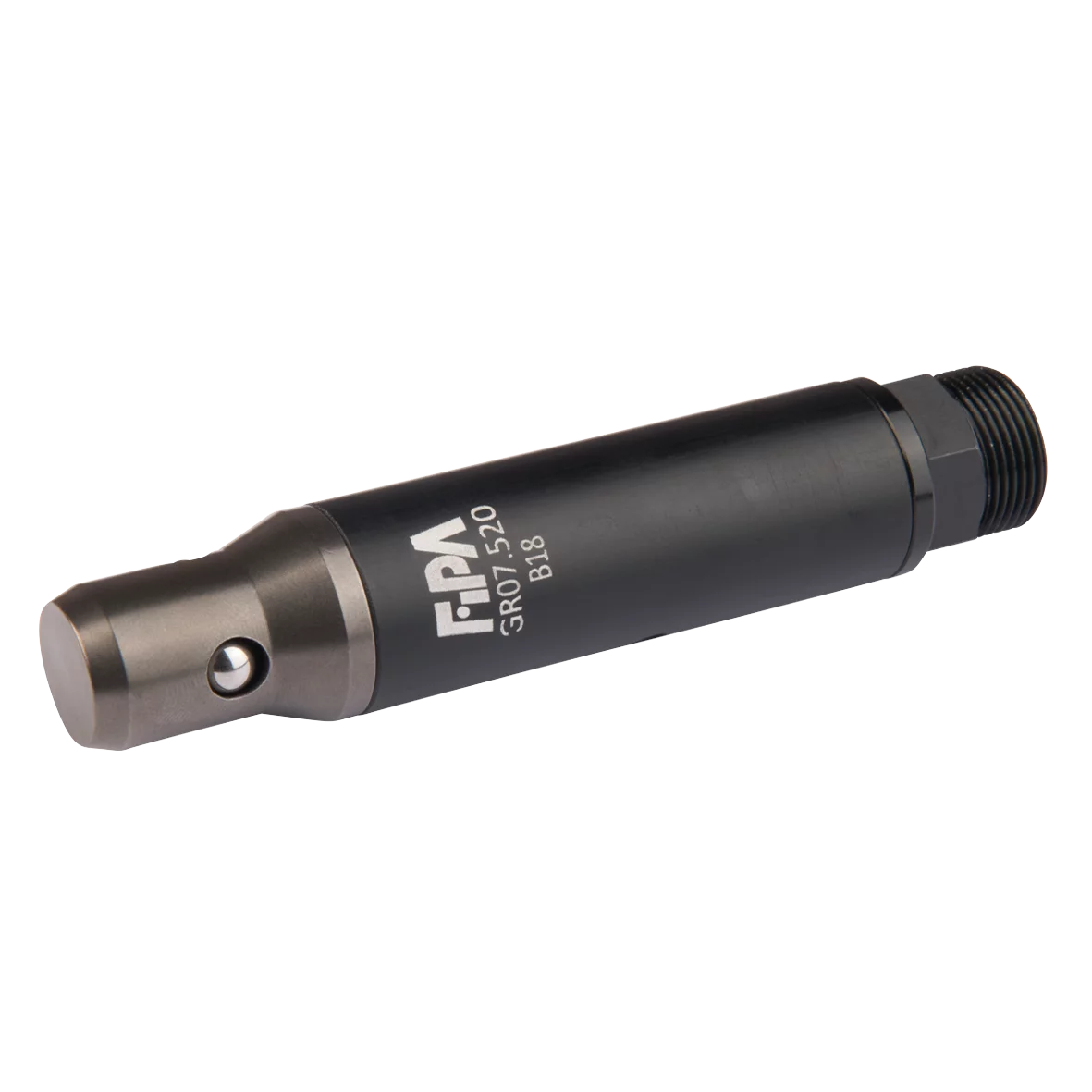

Pneumatic centering unit, clamping-Ø 20 mm, single acting
SKU:GR07.520
Login to see the price
- Single-acting centering element for docking with the mold
- Use for locking the gripper in place while placing inserts or demolding with high force
- Optional Sensors can be used to detect locking and/or unlocking
- Bushing can be mounted from either side in the mold
- Guiding sleeve not included in the scope of delivery
| Designation | Value |
|---|---|
| Ø D | 26.0 mm |
| H | M17x1 |
| B | 33.0 mm |
| A | 75.0 mm |
| C | 96.0 mm |
| F | 5.4 mm |
| E | 20.0 mm |
| G | 4.6 mm |
| I | 8.0 mm |
| K | 17.0 mm |
| Guiding sleeve | GR07.521 |
