    3/2 way solenoid valve for vacuum, NO, spring return, GPR

    SKU:36.341

    Login to see the price
    Loading...
    • Ideal for the setup of pneumatically controlled vacuum systems
    • Valve control requires no electrical connection – fully pneumatic operation
    • Functions: Vacuum ON/OFF, venting, or blow-off
    • High flow rate in a compact design for short evacuation times and rapid vacuum buildup
    • Short switching times for fast and efficient process cycles
    • Workpiece retention during power failure (NO)

    Wiring diagrams

    Wiring diagrams
    36.810 | 36.811

    Wiring diagrams

    Wiring diagrams
    36.815 | 36.820 | 36.825 | 36.335 | 36.336 | 36.340 | 36.341

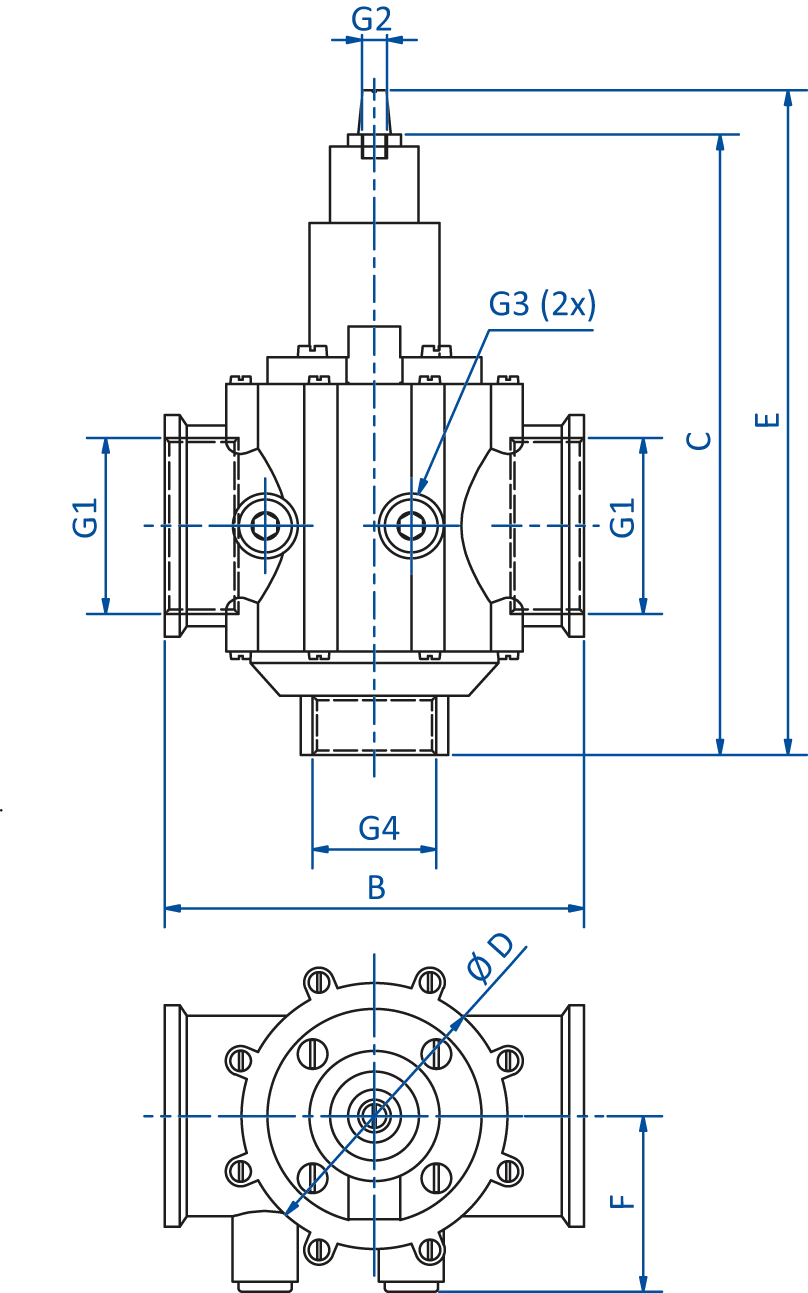

    Product Dimensional Drawing Image
    DesignationValue
    Ø D90.0 mm
    G1G2
    G2G1/8
    B142.0 mm
    C210.0 mm
    F59.5 mm
    G3G3/8
    E225.0 mm
    G4G1 1/4
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    36.810-Vacuum-valve_datenblatt_en.pdf1.22 MB Download
    Here you can find all documents about this product.
