    Particularly suitable for oily sheet metal

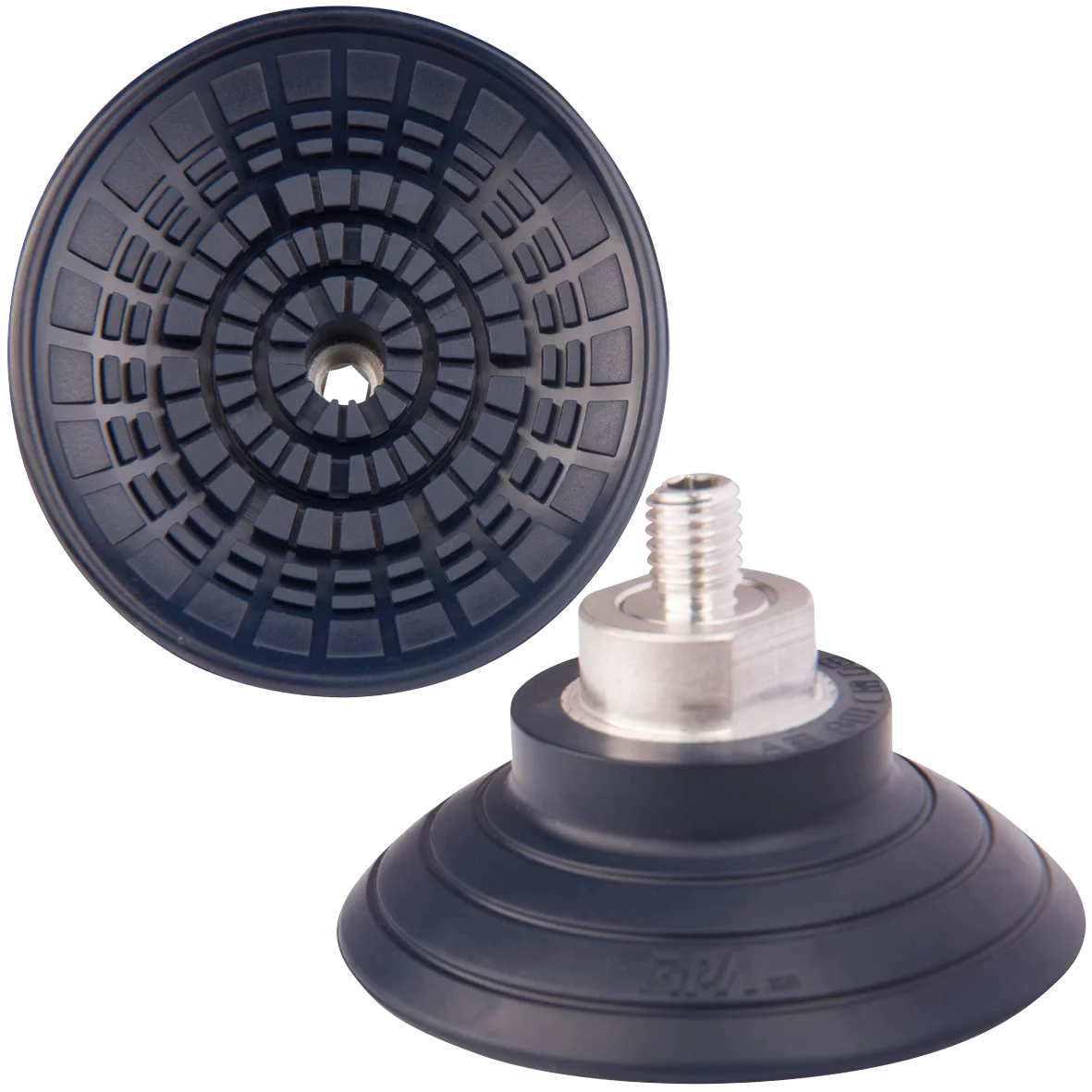

    Flat vacuum cup diam. 80 mm NBR blue, with fitting M10-male

    SKU:103.080.057.1

    Login to see the price
    Loading...
    Product Dimensional Drawing Image
    DesignationValue
    DrawingA
    Ø D80.0 mm
    H35.0 mm
    Ø dn4.0 mm
    h17.6 mm
    Ø D max.*85.1 mm
    G2 (male)M10
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    SM-F-Flat-vacuum-cup_datasheet_en.pdf1.23 MB Download
    Vacuum-cups-materials-overview_en.pdf933.04 KB Download
