    Product Image
    More items

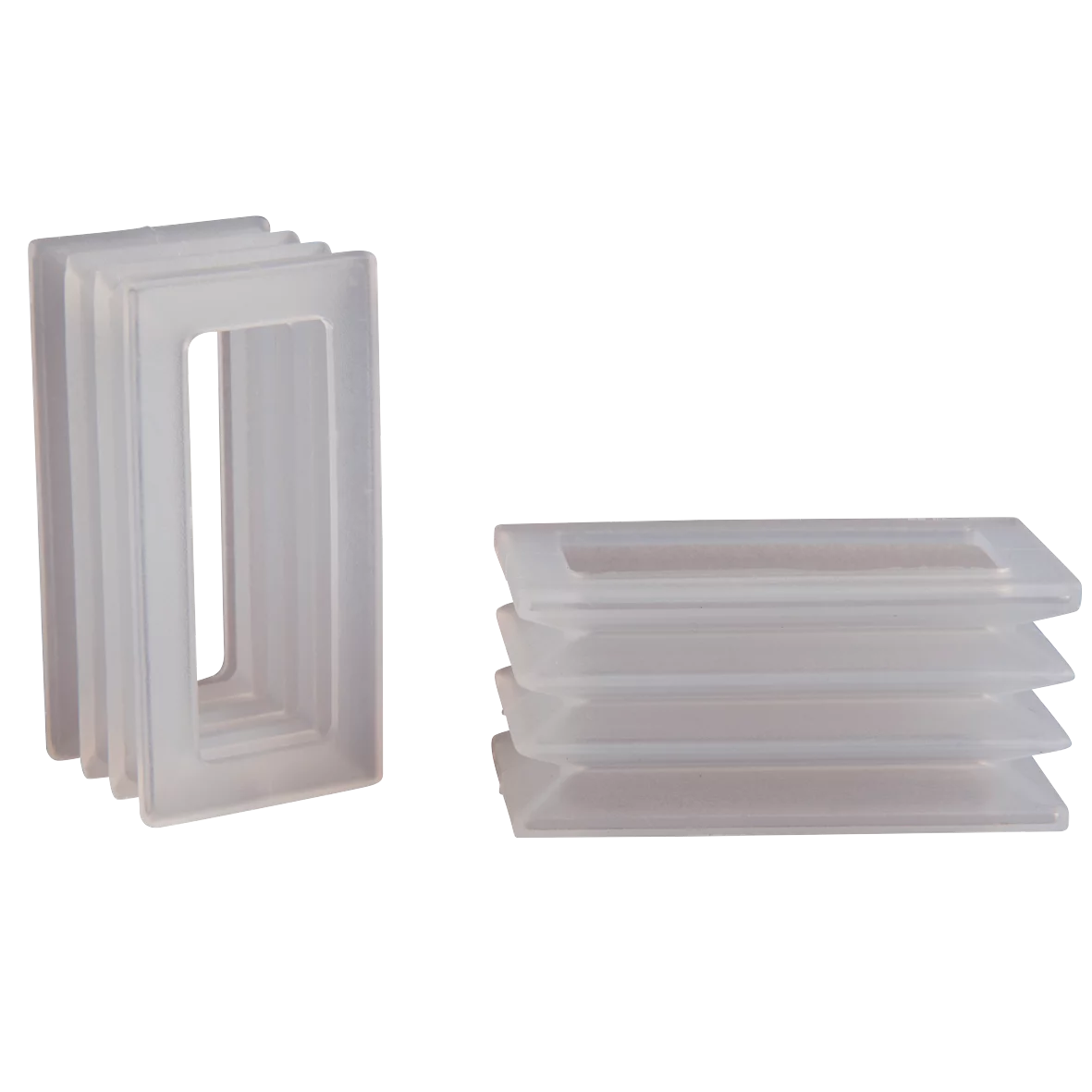

    Bellows vacuum cup 60x29 mm (2.5 bellows) silicone transparent

    SKU:209.60x29.001.2-LE

    Login to see the price
    Loading...
    Designwithout stiffener wire- stiffeners

    Product notes

    Bellows vacuum cups in rectangular design made of FDA-compliant material (SI). Particularly suitable for film-packaged products and filled pouches. Also available with wire stiffening. Connection via an interlocking snap-in carrier plate.

    Advantage

    • Large suction surface due to rectangular design
    • Bellows compensate differences in height and enable good adaptation to curved or uneven product surfaces
    • Gentle attachment to the product
    • Good fit for irregularities and bellows thanks to soft sealing lip
    Product Dimensional Drawing Image
    DesignationValue
    DrawingB
    L60.0 mm
    B29.0 mm
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    datasheet-bds-fipa-sv-rb-rechteck-balgensauger-en-master.pdf766.15 KB Download
    fipa-materials-overview-en.pdf933.04 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
