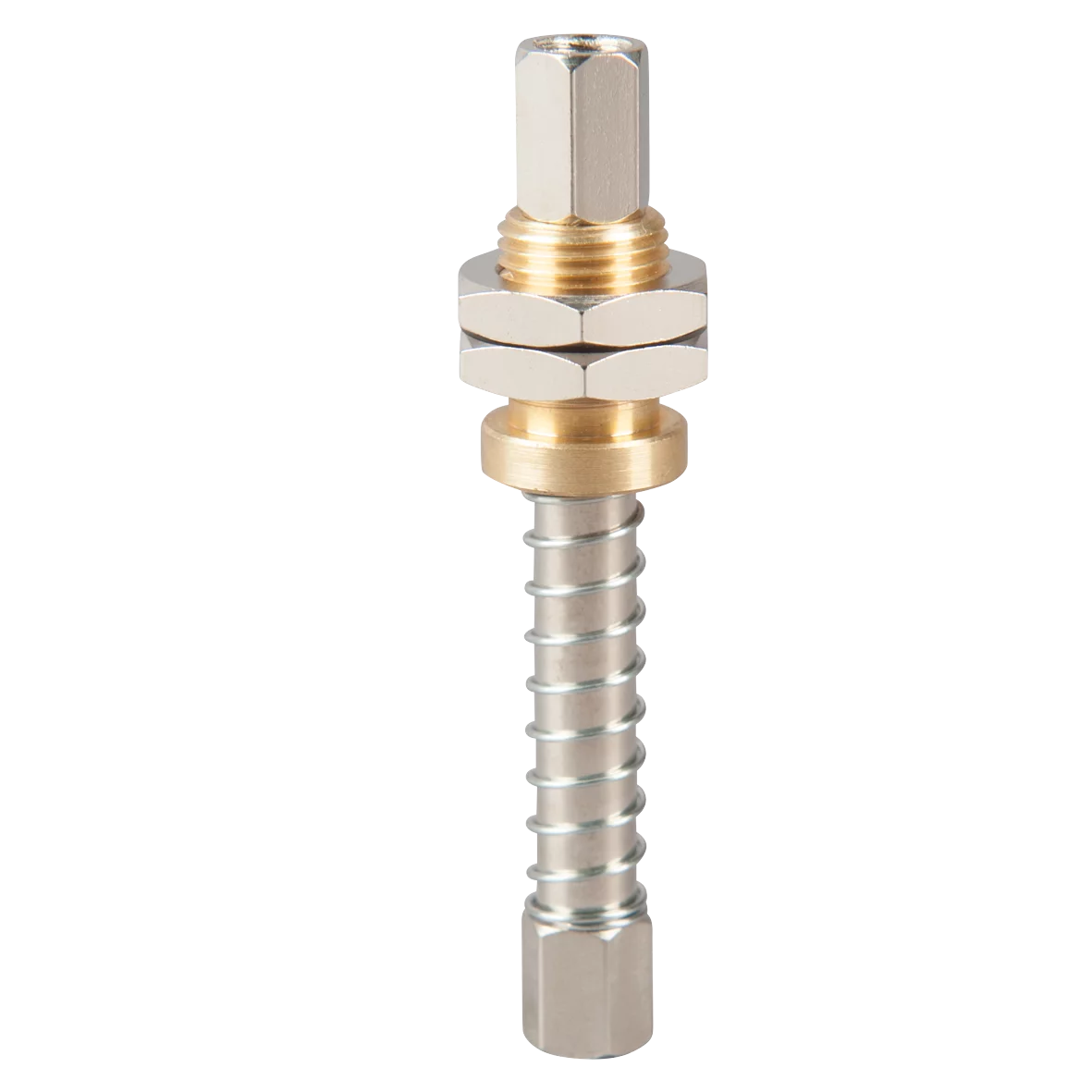

    Spring leveler, torsionally rigid, stroke = 20 mm

    SKU:50.153

    Login to see the price
    Loading...
    • Compensate for height differences
    • Soft attachment for sensitive products
    • Leveling as standard version
    • Vacuum connection on top, vacuum channel via spring leveler
    • Also available non-rotating (M5-female)

    Hint:

    • Recommendation: for the best possible service life do not exceed max. stroke indicated
    Product Dimensional Drawing Image
    DesignationValue
    H59.0 mm
    h26.2 mm
    h15.5 mm
    G1 (female)M5
    h315.0 mm
    SW114.0
    C20.0 mm
    G2 (female)M5
    G3 (male)G1/8
    Here you will find all available documents, such as data sheets, certificates, and much more.
    FileFilesizeActions
    sz-niv-s-federstoessel-datasheet_en.pdf603.77 KB Download
    Spring-levelers-Overview_en.pdf1001.34 KB Download
    Here you can find all documents about this product.

    Please login to download CAD files

    CAD files are only made available to registered users. Please log in with your existing FIPA customer account or create a new customer account.
